AC Input: 220V±10%
Rating range:
Output voltage: 0-600V
Output current: 0-3A
Output power: 0-1800W
Load Regulation:
Voltage: ≤0.1%FS
Current: ≤0.1%FS
Set value resolution:
Voltage: 0.1V
Current: 0.001A
Readback value resolution:
Voltage: 0.1V
Current: 0.001A
Set value accuracy:
Voltage: ≤0.1%FS＋100mV
Current: ≤0.3%FS＋10mA
Readback value accuracy:
Voltage: ≤0.1%FS＋100mV
Current: ≤0.3%FS＋10mA
Ripple (20Hz-20MHz):
Vpp: ≤1%FS＋300mV
Vrms: ≤0.3%FS＋100mV
Dynamic response time (10%-90% load): ≤5ms
Voltage settings and presets: Rotary encoder
Current settings and presets: Rotary encoder
Interface: Standard RS232, RS485, LAN
Protective function: With overvoltage protection, overcurrent protection, short circuit protection, temperature protection
Cooling method: Forced air cooling
Operating environment: Indoor use design, temperature: 0℃～40℃; humidity: 10%～85% RH
Storage environment: Temperature: -20℃～70℃; humidity: 10%～90% RH
Dimensions (WxHxD): 218×44×435mm
Weight: About 4kg
Brief Introduction

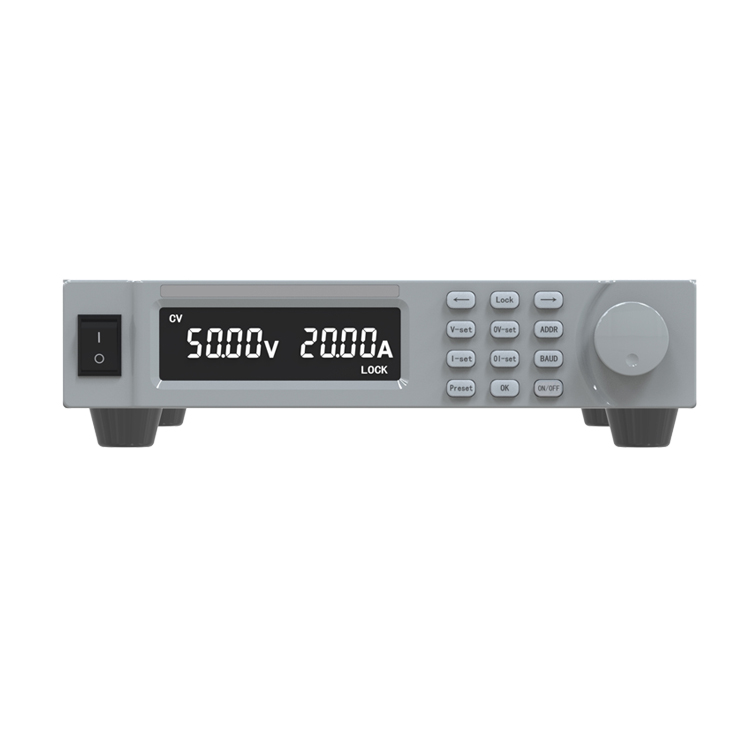

JINKO JK-P series is a high-performance DC power source independently developed and produced by jinko factory for scientific research and industrial applications. This series of products have simple operation, small size, high efficiency, high precision, high stability and other performance, with perfect protection function, allowing users to use the product more assured, more stable and more reliable.
Features:
1. Standard 1U, 2U, 3U size, easy to use on the rack;
2. Standard power 1800W-15000W;
3. Support parallel power expansion function, the parallel power can reach 120KW;
4. Voltage and current display, the working status is clear at a glance;
5. Automatic switching of CV/CC working mode;
6. Standard RS232, RS485, LAN port, optional CAN;
7. It has the function of remote compensation to compensate the voltage drop on the line;
8. Various protection functions of overvoltage, overcurrent and short circuit;
