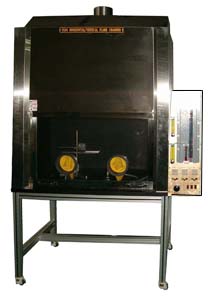

JFM DEC-011.UL94 HORIZENTAL FLAME CHAMBER

- POWER: AC 220V 1P

- DOOR: MANU SHUTTER TYPE VIEW GLASS: 5T

- FUME HOOD: 220(W) × 700(D) ×2200(H)mm

+ TESTING SHIELD: 1m3

- BUNNER:

UL Tirrill bunner H-5025, H-6240

MAKER: HUMBOLDT

1) IN DIA 9.5 ±0.3mm, LENGTH 100 ±10mm 125 Flame 1EA, 20mm Flame 1EA

2) HBF WING TIP 1EA

3) 12mm NEEDLE BUNNER 1EA

- OUT CASE: SUS 304 HAIRLINE 1.2T

- INSIDE: SUS 304 HAIRLINE (BLACK COATED)

- SPECIMEN CLAMP & ZIG:

1)V-0, V-1, V-2 1SET

2)VTM-0 , VTM-1 , VTM-2 1SET

3)5VA , 5VB , RING STAND 1SET

4)HBF , HF-1 , HF-2 1SET

5)HB CLAMP ZIG 1SET

- FLAME MEASURING GAUGE: 40mm 1EA , 20mm 1EA , 12mm 1EA

- BUNNER BASE: ANGLE 20 1SET

- GAS FLOW METER:

MAX 200 ml/min 1EA

MAX 2000ml/min 1EA

MAKER : KOFLOC JAPAN

FS : ±2%

- GAS PRESSURE GAUGE:

200mmAq

MANOMETER : M/N 310 DWYER U.S.A

RANGE : 0 - 10 INCH W.C

- EXHAUST FAN(BLOWER) 1EA:

+ ROOM LAMP: 20W

+ GLOVE BOX: 2 PORT

+ GAS: METHAN(CH4) GAS (10KG) Purity 98%

+ GAS REGULATOR: CH4 1SET

- GAS CONTROL NEEDLE V/V 1EA

- DIGITAL TIMER 3EA (T1, T2, DIGITAL STOP WATCH)

- TEMP INDICATOR: D-55 MAX 1200℃

- TEMP SENSOR : CA-K (0.5mm)

- COPPER BLOCK: 1EA for 10g, 1.76G 1EA, 5.8g 1EA

- EXHAUST HOOD line construction separate

- DIMENSION: 1200(W) × 700(D) × 220(H)mm

- WEIGHT: APP) 80KG
