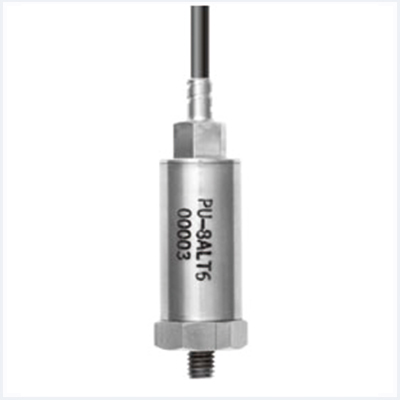

JFE PU-8ALT6 Piezoelectric-Type Pick-up (5 ~ 12,000Hz)

Sensitivity 5.1mV/(m/s2) (50mV/G) ±10%

Frequency range (±3dB) 5 to 12,000Hz

Maximum measuring acceleration 343m/s2 (35G)

Shock survivability 9,800m/s2 (1,000G) Peak

Mounted resonance frequency 16kHz min.

Operating temperature range -10 to +150°C

Preserve temperature range -15 to +155°C

Weight 53g

Case material SUS303

Cable φ3 Coaxial cable (fluoropolymer-coated)

Mounting JIS M6, Length 6mm

Amplifier Preamplifier built-in

Excitation voltage +12 to +25VDC

Constant current excitation +0.88 to +5.1mA

Output bias voltage +5.13 to +8.90VDC

Electrical isolation Case isolated

Protection against ingress of water IPX7
