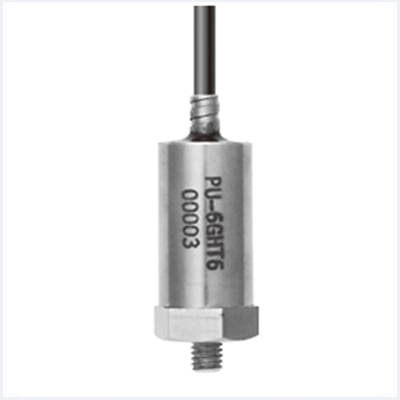

JFE PU-6GHT6 Piezoelectric-Type Pick-up (0.2 ~ 10,000Hz)

Sensitivity 5.1mV/(m/s2) (500mV/G) ±10%

Frequency range (±3dB) 0.2 to 10,000Hz *

Maximum measuring acceleration 98m/s2 (10G)

Shock survivability 9,800m/s2 (1,000G) Peak

Mounted resonance frequency 20kHz min.

Operating temperature range -20 to +80°C

Preserve temperature range -24.5 to +85°C

Weight 40g

Case material SUS303

Cable φ3 Coaxial cable (polyethylene-coated)

Mounting JIS M6, Length 6mm

Amplifier Preamplifier built-in

Excitation voltage +23 to +25VDC

Constant current excitation +3.9 to +5.1mA

Output bias voltage +14 to +16VDC

Electrical isolation Case isolated

Protection against ingress of water IPX7
