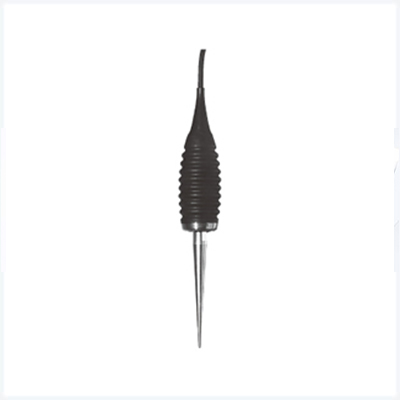

JFE PU-601R Piezoelectric-Type Pick-up (5 ~ 5,000Hz)

Sensitivity 5.1mV/(m/s2) (50mV/G) ±10%

Frequency range (±3dB ) 5 to 5,000Hz

Maximum measuring acceleration 490m/s2 (50G)

Shock survivability 9,800m/s2 (1,000G)

Mounted resonance frequency 25kHz min. (by screw mount)

Operating temperature range -10 to +60°C

Preserve temperature range -15 to +65°C

Weight 170g

Case material Hard rubber

Cable length 1m

Cable Curl cord cable

Mounting JIS M6, Length 6mm

Probe Length 102mm (attached to the pick-up)

Amplifier Preamplifier built-in

Excitation voltage +12 to +25VDC

Constant current excitation +0.4 to +5.1mA

Output bias voltage +4.75 to +9.20VDC

Electrical isolation Case isolated

Spetifications
