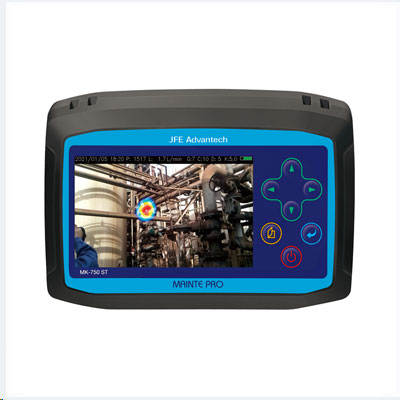

JFE MK-750ST-CE Gas/Air Leak Viewer (40 kHz)

Ultrasound Sensors

Frequency band: Center frequency 40 kHz

Field of view:

Approx. 62 degrees horizontally

Approx. 35 degrees vertically

Storage & Output

Data Storage: Internal memory: 1 GB

Data Transfer: USB communication

Data Record: Sound pressure map image (JPEG), Photo image, Sound pressure data, Data list

Others

Image Display: 4.3 inch LCD / 800×480 pixel

Battery: Lithium ion battery

Batter Life: 8 hours *During normal temperature operation

Battery charging time: Approx. 3 hours

Weight: 740 g (incl. battery/excl. protector (rubber protective cover) and hand strap)

Dimensions: W182 mm×H114 mm×D64 mm (excl. protector)

Weight: Approx. 740g (including battery, excluding wrist strap and protector)

Ingress Protection: IP42

Standard configuration: Main unit, Battery pack (RRC2057), Battery charger (RRC-SMB-MBC), Wrist strap (MK-9907),

Protector (MK-9909), USB cable (U2C-MF10BK), and Instruction manual

Options: Battery pack [as a spare] (RRC2057), Neck strap (MK-9908), Carrying case (MK-9705), Waist bag

(MK-9706), Oscillator (MP-161-S001).
