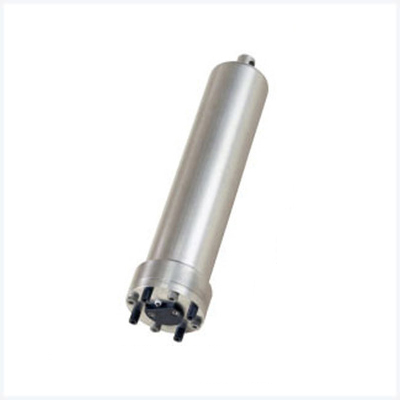

JFE ARO-USB Fast optical DO sensors (7000 m, -3 ~ 45 °C, 0 ~ 200%)
Manufacturer: JFE Model: ARO-USB - Contact
Parameter: DO
Principle: Phosphorescence
Range: Air saturation 0 to 200%
Resolution: 0.01 to 0.04%
Accuracy: Non-linearity ±2% of full scale (at 1 atm, 25°C)
Parameter: Temperature
Principle: Thermistor
Range:-3 to 45 °C
Resolution: 0.001 °C
Accuracy: ±0.02 °C (ARO-CAV: 3 to 31 °C) (Others: 0 to 35 °C)
Measuring mode: Continuous mode, Burst mode
Measuring interval: 0.1 to 0.9 s (0.1 s increment), 1 to 600 s (1 s increment)
Burst sampling interval: 1 to 1440 min
Number of samples: 1 to 18000
Memory medium: 1 GB miniSD card
Communication: USB 2.0 (ver. 1.1 compatible)
AD converter: 16 bit digital conversion
Battery: CR-V3 3.3Ah Lithium ba ery/max 2 pieces
Current drain: 125 mA
Material: Titanium (Ti-6AI-4V)
Dimensions: Φ54 × 235.5 mm
Weight: Approx. 0.9 kg in air, 0.6 kg in water
Pressure rating: 7000 m depth equivalent
