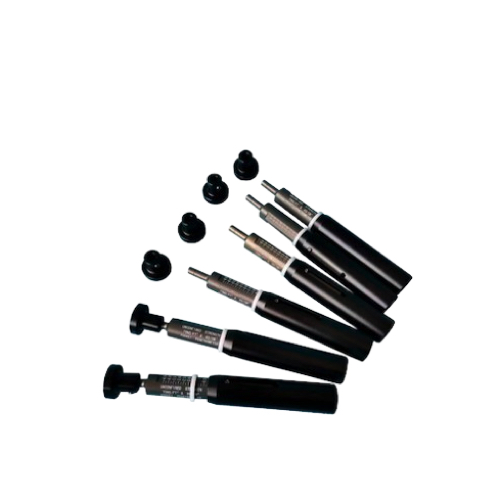

Jeweltest 29-3729 Soil Pocket Penetrometer (1/4 inch)

Application: Used for visual classification of soils in the field

Measured parameter: Unconfined compressive strength

Reading mode: Direct reading on scale (TSF or kg/cm2)

Reading position: Lower edge of the red ring, near the handle

Peak hold mechanism: Red ring retains the maximum reading on the scale

Penetration depth: 1/4 inch from the tip

Test conditions:

Surface condition: Smooth

Measuring angle: Perpendicular to the test surface

Error handling: Take several readings close to each other, discard significantly deviating values and average the results

Soft soil mode: Using Adapter Foot: divide the reading by 16
