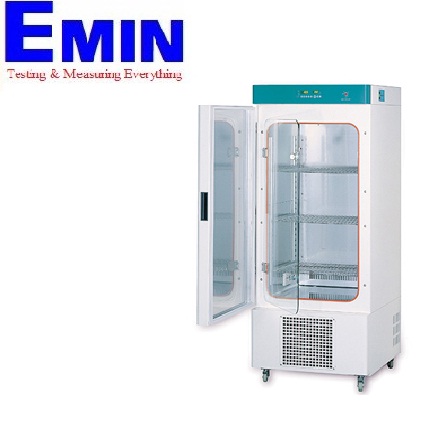

Jeiotech IL-21 Low Temp. Incubators (Air-jacketed Models)
Model: IL-21
Manufacturers: Jeiotech
Origin: Korea
warranty: 12 months
Temperature Range (℃ / ℉) Amb. 5~60 /
Fluctuation at 37℃ (±℃ / ℉)0.2 / 0.36
Variation at 37℃ (±℃ / ℉) 0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch)500×520×940 /
Overall (mm / inch) 635×740×1630 /
Net Weight (kg / lbs) 135
Electrical Requirements (230V, 50 / 60Hz) 6.4A
Cat. No. AAH22051K
Operating Features
- Temperature control: 0°C to 60°C.
- Microprocessor PID control.
- Simple calibration and auto-tuning functions.
- Digital timer with Delayed ON/OFF function: 1 min to 99 hr 59 min.
- High temperature limit setting and open door alarm.
- Convenient preset function for 3 most commonly used temperature settings.
- Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
- Adjustable three-step fan speed with defrosting time and period control.
- Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad.
- RS-232 interface.
Constructional Features
- Forced air convection using an optimal cross flow fan for chamber temperature uniformity.
- Large chamber volume: maximum 244L. (8.6 cu ft)
- Built-in electrical outlet with a safety cover inside the chamber.
- Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
- Detachable shelves and round-cornered chamber interior allowing easy cleaning.
| Model | IL-11 | IL-21 | |||
|---|---|---|---|---|---|
| Chamber Volume (L / cu ft) | 150 / 5.32 | 244 / 8.6 | |||
| Refrigerator (Hp) | 1 / 8 HBP | 1 / 6 HBP | |||
| Temperature | Range (℃ / ℉) | 0 to 60 / 32 to 140 | |||
| Fluctuation 1) at 25℃ (±℃ / ℉) | 0.1 / 0.18 | ||||
| Variation 1) at 25℃ (±℃ / ℉) | 0.5 / 0.9 | 0.4 / 0.72 | |||
| Dimension(W×D×H) | Interior (mm / inch) | 600×500×500 / 24×20×20 | 500×520×940 / 20×20.5×37 | ||
| Exterior (mm / inch) | 735×742×1010 / 28.9×29×40 | 635×740×1630 / 25×29×64 | |||
| Net Weight (Kg / lbs) | 100 / 220 | 135 / 297 | |||
| Electrical Requirements (230V) | 60Hz, 4.5A | 50Hz, 4.5A | 60Hz, 6.4A | 50Hz, 6.4A | |
| Cat. No. | AAH22041K | AAH22042K | AAH22051K | AAH22052K | |
| Electrical Requirements (120V) | 60Hz, 8.3A | 60Hz, 10.6A | |||
| Cat. No. | AAH22046U | AAH22056U | |||
1) Technical data according to DIN 12880.
