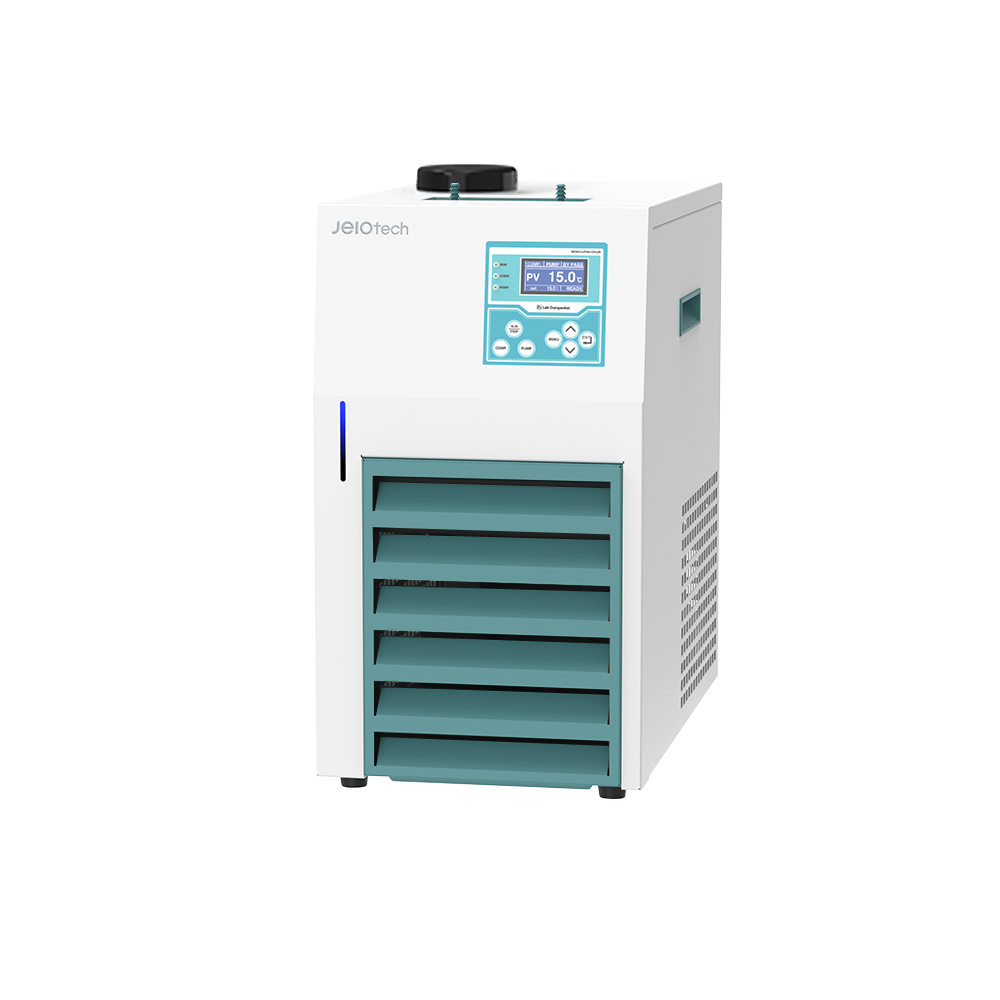

JEIOTECH RC-05 Recirculating Cooler (Compact,-10~30℃)

- Temperature 1) (bath fluid : ethylene glycol mix 1:1 water)
+ Working temperature range (℃ / ℉): -10 to 30 / 14 to 86
+ Temperature stabilityat 15℃ (±℃ / ℉): 1 / 1.8
- Cooling capacity(bath Fluid : ethylene glycol mix 1:1 water)
+ at 20℃ (kw): 0.58
+ at 10℃ (kw): 0.45
+ at 0℃ (kw): 0.35
+ at -10℃ (kw): 0.27
+ at -20℃ (kw): 0.11
- Pump
+ Max. flow rate(L / min, gal / min): 26 / 6.87
+ Max. pressure (bar / psi): 0.7 / 10.15
- Dimension
+ Max. filling capacity (L, cu ft):5 / 0.18
+ For tubing dia. (mm / inch): 9.5 / 3/8
+ Filling inlet (Ø, mm / inch): 120 / 4.7
+ Overall (WxDxH, mm / inch):300×550×530 / 11.8×21.7×20.9
+ Net weight (kg / Ibs): 45 / 99.2
- Electrical requirements (230V, 60Hz): 4A

Datasheet
