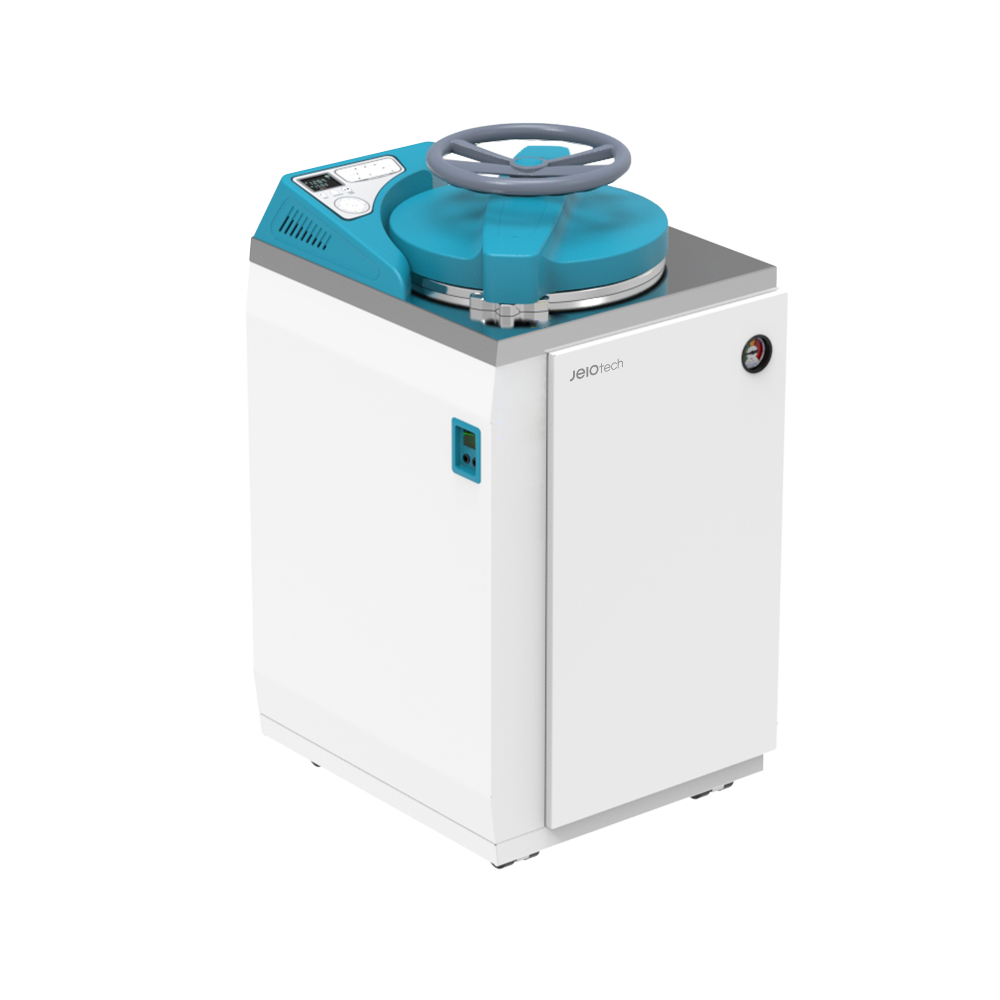

JEIOTECH ST-85G Autoclave (85L, 123℃)

Control: Microprocessor PID control
Volume: 85 (l)
Temperature:
+ Sterilization temp. (℃ ): 110 to 123
+ Melting temp. (℃): 60 to 100
Pressure:
+ Sterilization at 121℃ (kg/cm2) : 1.1 to 1.2
+ Gauge range in analog (Mpa): - 0.1 to 0.6
Timer: 0 to 999 min.
Safety:
+ Over temperature protector
+ Pressure safety valve
+ Over current protector
Dimension:
+ Basket (ØxH) (mm) : 380x330
+ Interior (WxH) (mm): 400x758
+ Exterior (W×D×H) (mm): 624x672x1083
Net weight (Kg): 104
Electrical requirements (230V, 50 / 60 Hz): 14.3A

Accessories & Options:
+ Recorder (AAAL1501): 2120 USD
+ Pressure Sensor (AAAL1511): 260 USD
+ Basket for ST-85G (ATC0004): 200 USD
