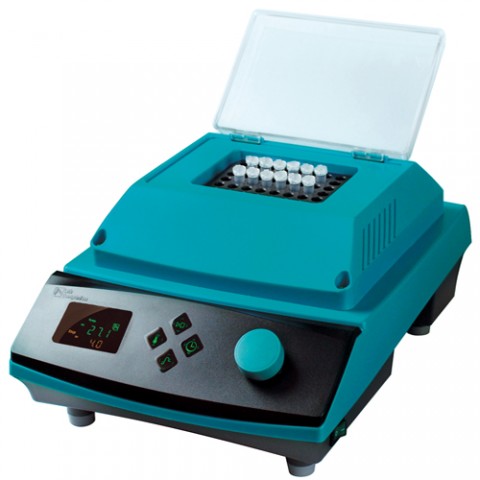

JEIOTECH CCB-350 Heating & Cooling Block (-20~95℃)

Name: JEIOTECH CCB-350 Heating & Cooling Block (-20~95℃)
Brand: JEIOtech
Price: 1449 USD
Availability: OutOfStock

ManufacturerJEIOtech(View more products from this manufacturer)

ModelCCB-350

P/NAAHJ5015K

USD 1,449.00

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Control System Feedback control PID
Temperature Range (℃ / ℉) Amb. -20 to 95 / Amb. -36 to 203
Fluctuation at 37℃ (±℃ / ℉) 0.06 / 0.11
Variation at 37℃ (±℃ / ℉) 0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch) 154×99×37 / 6.1×3.9×1.5
Overall (mm / inch) 276×334×120 / 10.9×13.1×4.7
Net Weight (kg / lbs) 5.1 / 11.2
Electrical Requirements (230V, 50 / 60Hz) 3.5A

Operating Features

Precision accuracy of ±0.1℃ is ensured by its PID controller from ambient + 5℃ to 130℃.
Wide temperature control range from Amb. -20 to 95°C with rapid cool down and heat-up times.
Simple temperature calibration.
Memory function of programmed protocols allowing relevant parameters of each protocol step to be stored.
- Up to 10 protocols allowed for memory storage.
- Up to 10 steps allowed for each protocol.
Two types of timer modes:
- Timer 1 starts immediately after the timer setting.
- Timer 2 starts only after reaching the set temp.

Constructional Features

Cooling is controlled by Peltier elements for an energy efficient compact design.
Bright VFD display with responsive touch buttons.
Optimal heat transfer is achieved by the tight coupling design of the main body and the corrosion- resistant anodized aluminum blocks.
Transparent lid allows easy sample monitoring and even temperature distribution.
Blocks can be easily interchanged by using the included block lifter.
Heating blocks depending on your sample tube or vial sizes. (refer to accessories)

Model		CCB-350
Control System		Feedback control PID
Display		VFD(0.1℃ resolution)
Temperature	Range (℃ / ℉)	Amb. -20 to 95 / Amb. -36 to 203
	Fluctuation at 37℃ (±℃ / ℉)	0.06 / 0.11
	Variation at 37℃ (±℃ / ℉)	0.15 / 0.27
Dimension (W×D×H)	Internal (mm / inch)	154×99×37 / 6.1×3.9×1.5
	Overall (mm / inch)	276×334×120 / 10.9×13.1×4.7	276×334×250 / 10.9×13.1×9.8
	Net Weight (kg / lbs)	5.1 / 11.2	5.5 / 12.1
Electrical Requirements (230V, 50 / 60Hz)		3.5A
Cat. No.		AAHJ1015K	AAHJ1115K
Electrical Requirements (120V, 60Hz)		6.7A
Cat. No.		AAHJ1013U	AAHJ1113U
