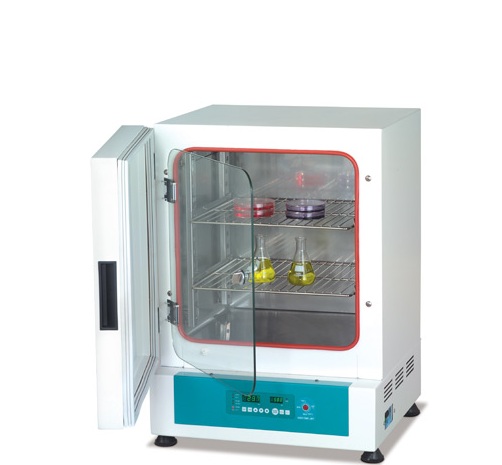

JEIOTECH IB-21E Incubators (3~60℃, 205L)

Name: JEIOTECH IB-21E Incubators (3~60℃, 205L)
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelIB-21E

P/NAAH26035K

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Chamber Volume (L / cu ft) 205/7.2 l
Temperature Range (℃ / ℉) Amb. 3~60 /
Fluctuation at 37℃ (±℃ / ℉)0.2 / 0.36
Variation at 37℃ (±℃ / ℉) 0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch) 423×355×445 /
Overall (mm / inch) 533×475×725 /
Net Weight (kg / lbs) 33 / 72.8
Electrical Requirements (230V, 50 / 60Hz) 2.4A
Cat. No. AAH26035K

Phụ kiện tùy chọn:

Wire Shelves
Stainless steel and electropolished shelves are readily removed without using tools for easy cleaning.

Cat. No.	Models	Description
Cat. No.	Models	Included	Maximum	W×L (mm / inch)
EDA8136	IB-05G	2	8	366×316 / 14.4×12.4
EDA8135	IB-15G	2	12	446×366 / 17.6×14.4
EDA8137	IB-25G	2	12	576×419 / 22.7×16.5
EDA8136	IB-01E	2	11	366×316 / 14.4×12.4
EDA8220	IB-11E	2	14	466×490 / 17.6×19.3
EDA8219	IB-21E	2	15	566×466 / 22.3×17.6
EDA8219	IL-11 / 11A	2	12	566×466 / 22.3×17.6
EDA8219	IL-11-4C	8	48	566×466 / 22.3×17.6
EDA8220	IL-21 / 21A	3	26	466×490 / 17.6×19.3
EDA8223	ILP-02	1	6	195×310 / 7.7×12.2
EDA8221	ILP-12	2	11	305×299 / 12×11.8
EDA8235	SIF-5000 / R	2	8	416×406 / 16.4×16.0
EDA8233	SIF-6000 / R	2	11	516×506 / 20.3×19.9

Perforated Shelves

Stainless steel shelves are readily removed without using tools for easy cleaning.

Cat. No.	Models	Description
Cat. No.	Models	Maximum	W×L (mm / inch)
AAA12531	IB-05G	8	366×316 / 14.4×12.4
AAA12532	IB-15G	12	446×366 / 17.6×14.4
AAA12535	IB-25G	12	576×419 / 22.7×16.5
AAA12531	IB-01E	11	366×316 / 14.4×12.4
AAA22522	IB-11E	14	466×490 / 17.6×19.3
AAA22521	IB-21E	15	566×466 / 22.3×17.6
AAA22521	IL-11 / 11A	12	566×466 / 22.3×17.6
AAA22521	IL-11-4C	48	566×466 / 22.3×17.6
AAA22522	IL-21 / 21A	26	466×490 / 17.6×19.3
AAA24501	ILP-02	6	195×310 / 7.7×12.2
AAA24502	ILP-12	11	305×299 / 12×11.8

Stacking Kits

Stackable 2 steps up to maximize space efficiency with exclusive stacking kits.
(Only for IB-G, IB-E series)

Cat. No.	Models	Description
AAA21521	IB-05G	Stacking kits for stackable chambers
AAA21522	IB-15G	Stacking kits for stackable chambers
AAA21523	IB-25G	Stacking kits for stackable chambers
AAA26501	IB-01E	Stacking kits for stackable chambers
AAA26502	IB-11E	Stacking kits for stackable chambers
AAA26503	IB-21E	Stacking kits for stackable chambers

Operating Features

Temperature control: +3°C above ambient to 60°C.
Microprocessor PID control.
Simple calibration and auto-tuning functions.
Digital timer with delayed ON/OFF function: 1 min to 99 hr 59 min.
High temperature limit setting and open door alarm.
Convenient preset function for 3 most commonly used temperature settings.
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad.

Constructional Features

Vibration-free design ideal for yeast cultivation.
Compact and lightweight design with completely sealed gasket.
Stackable up to 2 units using the optional stacking kit. (optional)
Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
Detachable shelves and round-cornered chamber interior allowing easy cleaning.

Model		IB-01E	IB-11E	IB-21E
Chamber Volume (L / cu ft)		65 / 2.3	150 / 5.3	205 / 7.2
Temperature	Range (℃ / ℉)	Amb. +3 to 60 / Amb. +5.4 to 140
	Fluctuation ¹⁾ at 37℃ (±℃ / ℉)	0.2 / 0.36	0.3 / 0.54	0.1 / 0.18
	Variation ¹⁾ at 37℃ (±℃ / ℉)	0.6 / 1.08	0.8 / 1.44	1.1 / 1.98
Dimension (W×D×H)	Interior (mm / inch)	423×355×445 / 16.7×14×17.5	500×515×585 / 19.7×20.3×23	623×515×630 / 24.5×20.3×24.8
	Exterior (mm / inch)	533×475×725 / 21×18.7×28.5	595×630×865 / 23.5×24.8×34
