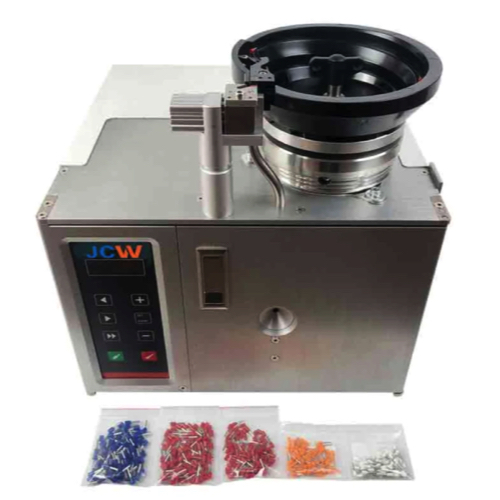

JCW JCW-F2 Loose Pre-insulated End Sleeve Stripper Crimper (6 - 12 mm, 17mm)

Function: Single wire, Multicore cable, Wire end stripping, Tubular insulated terminal crimping, Quadrangle crimping, Stripping length, Cutting depth, Data library

Conductor cross-section: 0.5, 0.75, 1.0, 1.5/2.5 mm² [changing vibrate bowl]

Stripping length: Max 17 mm

Crimping shape: Quadrilateral [imitating square]

Crimping length: 6 - 12 mm

Cycle time: 1.8 seconds

Air supply: 0.6 - 0.8 MPa (clean and dry air)

Power supply: AC 110 - 220V ± 10%, 50 / 60 Hz

Dimensions: L 390 x W 380 x H 390 mm

Weight: 32 KG

• Ideal electro-pneumatic controlled strip & crimp machine

• Automatic wire stripping and ferrule crimping 2 in 1

• Loose piece tubular bootlace ferrules in different lengths

• Insulated end sleeves ranging from 0.5 to 2.5 mm²

• Fast exchanging a few parts for different cross-sections

• Robust construction, reliable operation, industrial quality
