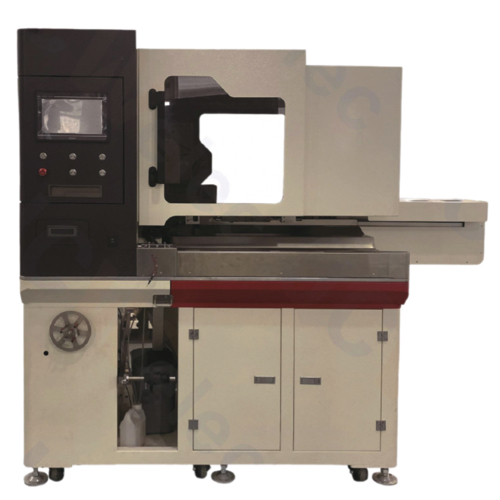

JCW JCW-CST21 High-End 5 Wires Terminal Crimping To Tinning Machine (AWG 32-AWG 16, 42-1000 mm, 2-10.5 mm)

Stripping length

Front side: Max 9.5 mm [Customizable]

Rear side: Max 13.5 mm [Customizable]

Wire range: AWG 32-AWG 16

Cutting length (L): 42-1000 mm [Other lengths on request]

Twisting length: 2-10.5 mm [ Customizable]

Tinning length: 0.5-13.5 mm

Production rate: 5500-6500 pcs/h by 300mm cutting length

Rated power: 2300 W

Air supply: AC 110V-220V±10%, 50/60 Hz

Dimensions: L 2000 x W 1070 x H 1900 mm

Detector: 0.5-0.8 MPa [ Clean and dry air]

Weight: 600KG

Display: Terminal run-out, Wire run-out, Wire knot, Terminal crimping, Air pressure, Heating

Power supply: 10" touch screen, English / Chinese [other languages on request]
