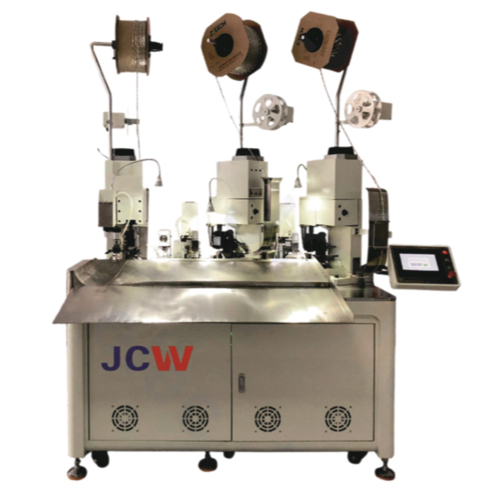

JCW JCW-CST110 Fully-auto Wires Cut Strip and Crimp Machine (20 KN, 41-99999 mm, 0.05-2 mm²)

Functions: 2 Wires, 3 Terminals, 3 Crimping Units, Cut depth, Crimp position, Pull-off length, Wire detector, Knot detector, Air pressure detector

Wire cross-section: 0.05-2 mm² (AWG 30-14)

Cut length (L): 41-99999 mm [Short size on request]

Cut accuracy:

L<100mm: 0.2 mm ± 0.002 x L

L≥100mm: 0.5 mm ± 0.002 x L

Cut length increment: 0.1 mm

Strip length:

Front end: 0.5-8 mm

Rear end: 0.1-10 mm

Production rate: 2000 sets/h

Display: 7" touch [on request]

Data library: 100 programs

Crimping force: 20 KN (2.0 tons) [40 KN on request]

Optional peripheral: Wire pre-feeder, CFM, wire stacker

Detection: Wire lack, Terminal crimping, Wire knot, Air pressure

Power supply: AC 110-220 V ± 10%, 50/60 Hz

Air supply: 0.4-0.7 MPa [clean and dry air]

Dimensions: L 1000 x W 1600 x H 1800 mm

Weight: 550 KG

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
