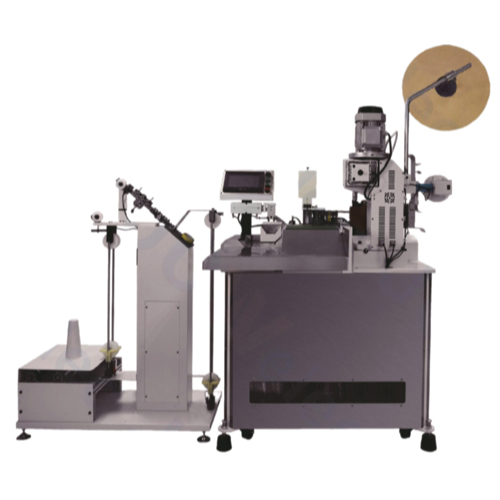

JCW JCW-CST07A Fully-auto Wire Crimping and Tinning Machine (0.03-0.75 mm², 30-9999 mm, 20KN)

Function: Wire pre-feeder, Single- / Dual-end strip, Single-end crimp, Cut depth, Stripping length, Twisting length, Tinning depth, Crimp position

Wire cross-section: 0.03-0.75 mm² (AWG 32-18)

Cutting length (L): 30-9999 mm

Stripping length: Front side: 0.5-10 mm, Rear side: 0.5-15 mm

Twisting length: 2-15 mm

Tinning length: 2-15 mm

Crimping force: 20 KN (2.0 tons)

Production rate: 3600 pcs/h by tinning

Power supply: AC 110-220V ± 10%, 50/60Hz

Air supply: 0.5-0.7 MPa [Clean and dry air]

Weight: 450 KG

Dimensions: L 1100 x W 920 x H 1600mm

Optional peripheral: CFM, Wire prefeeder

Detection: Wire lack, Wire jam, Stripping, Crimping, Air pressure

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility
