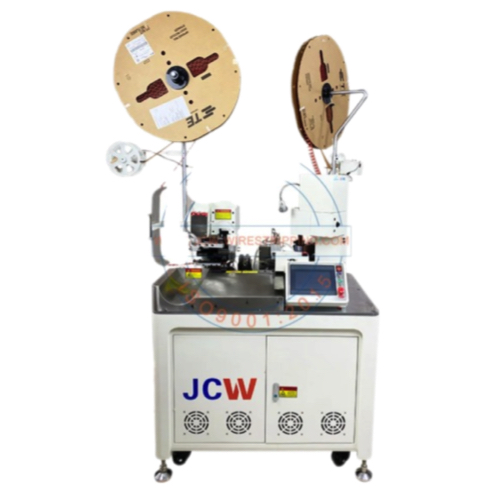

JCW JCW-CST02 INSU-R Automated Insulated Terminal Crimping Machine (0.1-2 mm², 20KN, 1.5-10 mm)

Function: Wire cutting, Single / Dual-end strip and twist, Single / Dual-end crimp, Cut depth, Pull-off length, Insulated terminal, non-insulated terminal, etc

Wire cross-section: 0.1-2 mm² (AWG 28-14) [can be custom]

Strip length: 1.5-10 mm

Cut length (L): 45-99999 mm

Cut length tolerance: ±1mm +0.002 x L

Crimp force: 20KN (2.0 tons) [40 KN on request] [Servo model]

Detector: Wire lack, Terminal crimping, Wire knot, Air pressure [CFM on request]

Production rate: 900-10000 pcs/h by 100 mm wire length, insulated terminal

Display: 7" touch screen, English / Chinese [other languages on request]

Power supply: AC 110-220V ± 10%, 50/60 Hz

Air supply: 0.4-0.6 MPa [Clean and dry air]

Weight: 388KG

Dimensions: L 1000 x W 800 x H 1500mm Straightener: 800 mm

CE-Conformity: Complies with CE equipment guidelines relative to mechanical, electromagnetic compatibility, electrical safety and electromagnetic compatibility.

• Important member of CST02 family

• Servo motor controlled crimping presses

• Apply to both insulated and non-insulated terminals

• Twist conductor before crimping

• Processing reeled terminals
