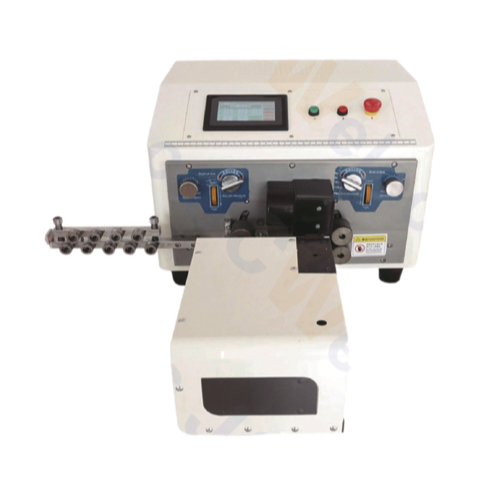

JCW JCW-CS14 Multicore Flat Cable Cutting Stripping and Twisting Machine (2-7 mm, 0.1-999999 mm)

Function: Flat multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Outer jacket stripping, Inner core stripping, Wire twisting, Twist force

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Cable size: 2-7 mm in width

Cutting length accuracy: 0.002 x L

Cutting length (L): 0.1-999999 mm

Outer jacket stripping length:

Leading (right) side: 80 mm [partial stripping]

Trailing (left) side: 50 mm [partial stripping]

Inner core stripping length: 30 mm at dual-ends

Production rate: 1000 pcs/h by 100mm wire length

Compatible peripherals: Cable despooler and prefeeder

Air supply: 0.4-0.7 MPa (clean and dry air)

Power supply: AC 110V-220V±10%, 50/60 Hz

Dimensions: L 460 x W 780 x H 350 mm

Weight: 47 KG
