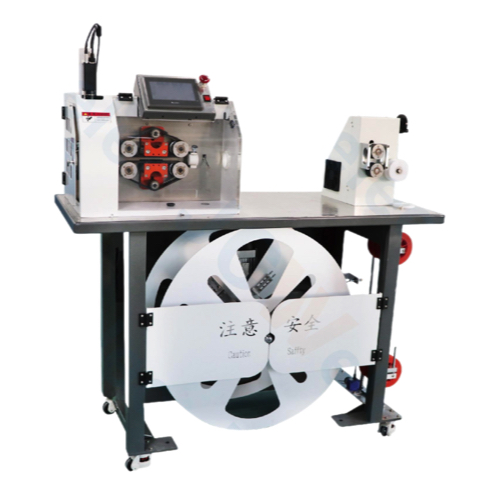

JCW JCW-C15 Freestand Ultra-precise Corrugated Tube Cutting Machine (0.1-99999.99 mm, 4-25 mm)

Function: Non-slitted corrugated tube, plastic tubes, visual positioning system, cut speed, feeding speed, save the program

Tube diameter: 4-25 mm

Pre-feeder: Servo motorized

Cutting length (L): 0.1-99999.99 mm

Cutting length increment: 0.1 mm

Cutting length tolerance: ± 0.1 mm

Production rate: 50 pcs/min by 200 mm length (No slitting)

Slitting unit: Optional

Data library: 100 programs

OEM: Yes

Power supply: AC 110-220V + 10%, 50/60 Hz

Dimensions: L 1770 x W 660 x H 1550 mm

Weight: 400 KG

Display: 7" color touchscreen, English / Chinese (other languages on request)
