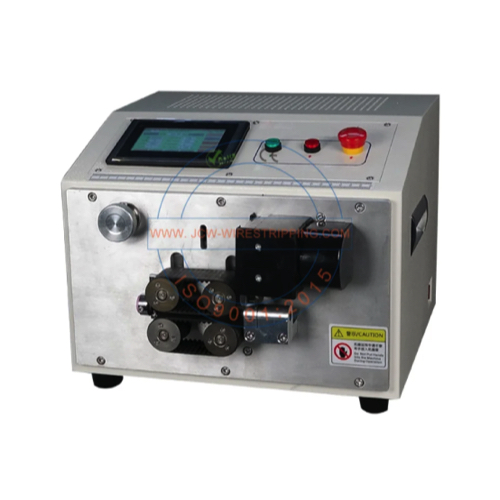

JCW JCW-C04 BELT Belt-feed Tube & Pipe Cutting Machine (0.1-99999 mm, 3-15 mm)

Function: Cutting speed, feeding speed, save the program, calibrate the cutting length

Raw material: PA, PE, PU, PTFE, rubber, and silicon tubes

Round material diameter: 3-15 mm

Blade width: 22 mm

Cutting length (L): 0.1-99999 mm

Cutting length increment: 0.1 mm

Cutting length tolerance: 0.002 x L

Production rate: 15000 pcs/h

Data library: 100 programs

OEM: Yes

Rated power: 400 W

Power supply: AC 110-220V + 10%, 50/60 Hz

Dimensions: L 360 x W 405 x H 295 mm

Weight: 25 KG

• Updated model, using belt feeding system

• Precise guide tube ensures vertical cutting

• Versatile cutting machine for cutting corrugated tube, hose, etc

• Fully programmable via color touch screen

• Support English and Chinese, other languages are customizable

• Max 15mm tube
