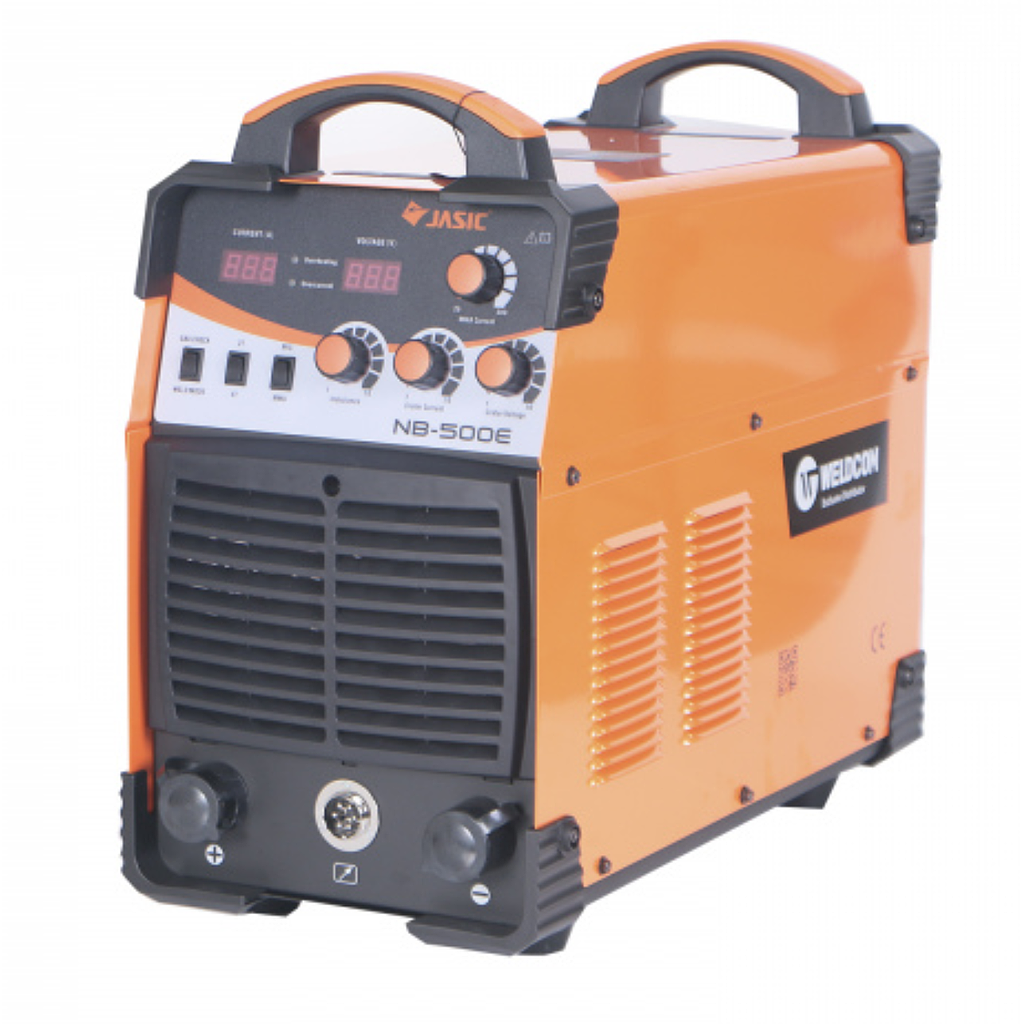

JASIC NB-500E MIG Welding Machine

Rated input voltage: 3 phase AC380V±15% 50 Hz

Rated power: 24.7 KVA

Power factor: 0.93

No-load voltage: 68 V

Maximum output with MIG welding (A/V): 500/39

MIG welding voltage adjustment range: 15-45 V

MIG welding current adjustment range: CV

Stick welding current adjustment range: 20-400 A

Stick welding maximum output (A/V): 500/40

Stick welding output characteristics: CC

Efficiency: 85%

Duty cycle: 50%

Protection level: IP21

Insulation level: F

MIG welding wire diameter: 1.0-1.6 mm

MIG welding wire coil weight: 15 kg

Cooling type: Air cooled

Accessories included

Pana standard WF-12 (P063) wire feeder without cable

QTB-500K welding gun is 3m long

Cooling clamp with 3m 50mm cable

CO2 meter – 36V
