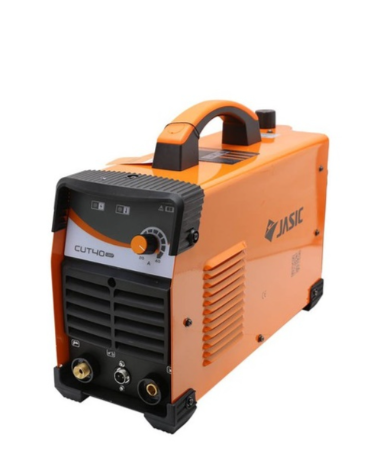

JASIC CUT40L207 Plasma Cutting Machine

Input Voltage: Single-phase AC 230V ±15%, 50/60 Hz

Power Consumption: 4.1 KVA

No-load Voltage: 220V

Cutting Current Range: 86A–92A

Cutting Voltage: 96V

Duty Cycle at Imax (25°C): 60%

Duty Cycle at 100% (25°C): 23A

Efficiency: 85%

Power Factor: 0.8

Maximum Cutting Thickness: 8 mm

Effective Cutting Thickness: 4 mm

Machine Weight: 8.6 kg

Machine Dimensions: 371 mm × 155 mm × 295 mm

Protection Class: IP23

Insulation Class: B

Arc Ignition: Contactless (Inductive)

Compressed Air (for carbon steel): 0.4–0.6 MPa; 7800 l/h

Compressed Air (for stainless steel): 0.4–0.6 MPa; 12000 l/h
