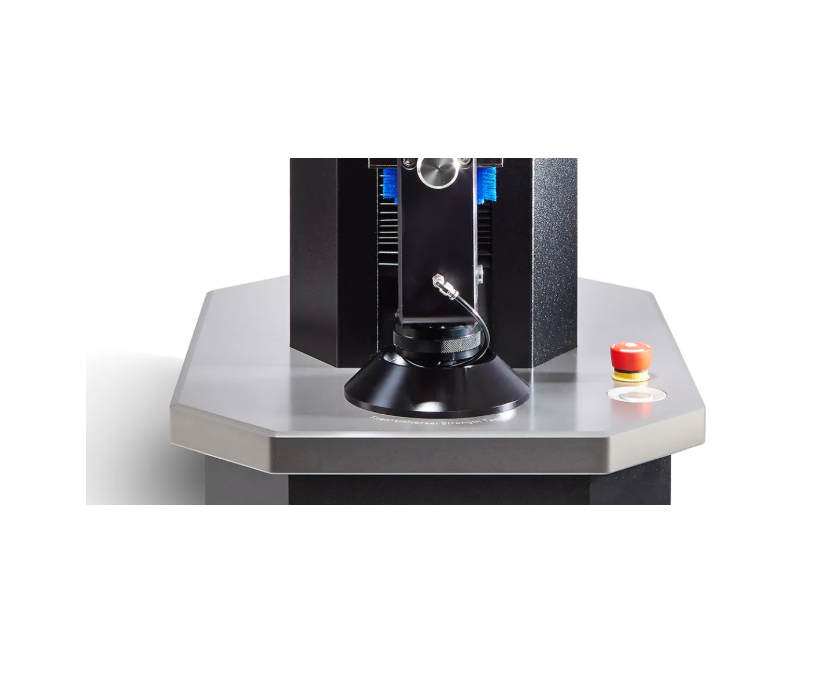

James Heal TITAN10 Universal Testing Machine (10kN)

Measuring Principle: Constant Rate of Extension (CRE)

Capacity (Tension & Compression): 10000 N, 10kN, 1000kgf and 2200lbf

Load Cells: Load Cells available: 10000 N, 5000 N, 1000 N, 500 N, 200, 100 N

Test / Return / Jog Speed: 1 - 2000mm/min

Accuracy of Load Cells Class: 0.5 (±0.5%) from 2 - 100% of load cell capacity

Speed Accuracy: ± 0.005%

Maximum Stroke: 700 mm - Maximum usable extension with T37 jaws fitted

Total Vertical Stroke: 980 mm - Maximum movement of the head between limit switches when no jaws are fitted

Positional Accuracy: ± 0.00125mm

Calibration: Load Cells: ISO 7500-1 (UKAS accredited) & ASTM E4;  Instrument: ISO 7500-1 & ASTM D76

Safety: CE marked (complies with Machinery, Low Voltage & EMC Directives)
