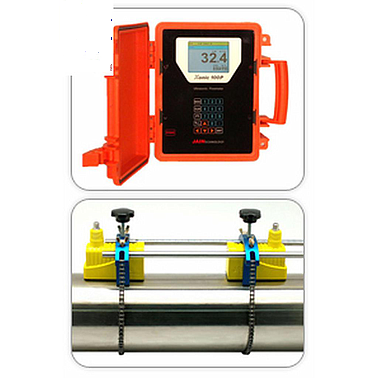

Jain Xonic 100P Portable Ultrasonic Flowmeter (DN20-6000mm)

Principle : AR Mode, Transit-Time
Display : Color Graphic LCD Display
Power : AC110~220V, free voltage
Measuring pipe :15 - 6,000mm
Accuracy : ± 1.0 % single path (over 0.02 m/s); ± 0.5 % dual path (over 0.02 m/s
Repeatability : 0.25 %
Turn Down Ration : 1000:1
Velocity Range : ±0.02 ~ 12 m/s
Output : 4-20mADC, RS-232C
Input : 4-20mADC (option)
Datalogger : 32 Mbytes
Enclosure : IP67

datasheet

Option

- Transducer
+ PLB size B, DN20-80mm
+ PLC size C, DN50-300mm
+ PLD size D, DN300-900mm
+ PLE size E, DN500-6000mm
+ PLF size F, DN2000-6000mm
- Cable PC-10 Portable Cable 10 meter
+ Power Adpator PA 110-220V to 15VDC
+ Easy Track PT-EASY easy track for B,C,D
+ Mag Track PT-MAG magnetic track for C,D,E
