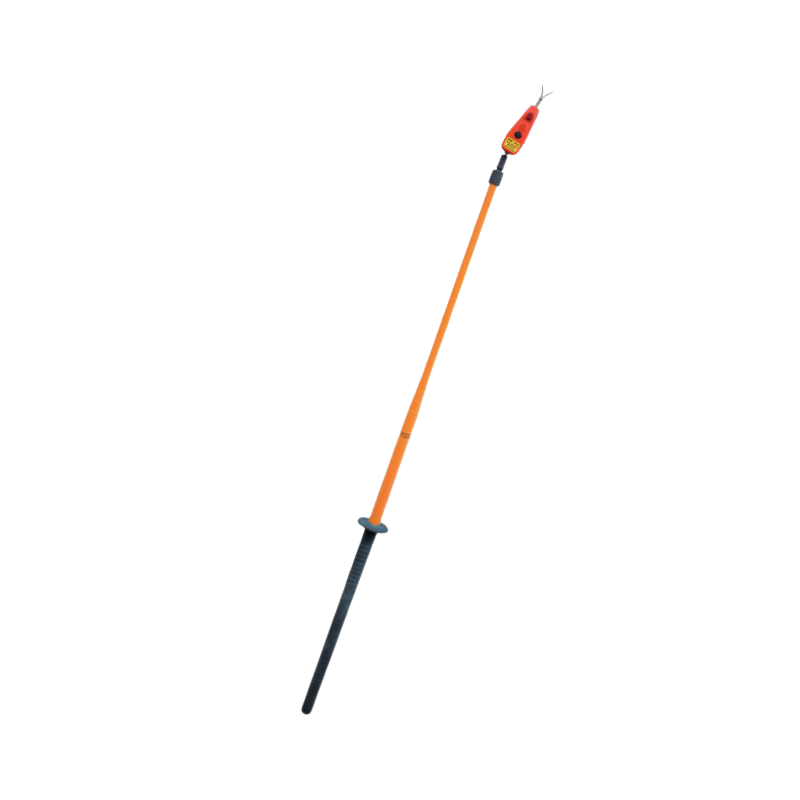

SEW 290L HD 高電圧検出器 (6kV ~ 81,5kV)
生産者: SEW Model: 290L HD 品物を保証します: 12 Month - 連絡先
Withstand voltage (On insulating rod): 100kV / 300mm: 1 minutes
Insulation resistance: 2000MΩ min. by 1kV / DC megger at the same testing location as withstand voltage
Leakage current: 100uA or less than 100uA at withstand voltage test
Construction: Waterproof (detecting head impervious to water)
Measuring voltage range: 6kV~81.5kV
Operation start voltage (To ground): 2.7kV
Display
Light: Flashing red light
Sound: Intermittent sound 50 dB apart 3m
Frequency: 50/60Hz
Operating temperature: 0°C ~ 40°C
Battery: 2 button-cells LR44(1.5V)
Overall length
Retracted: 1370±50mm
Extracted: 5600±50mm
Weight (battery included): Approx. 1105g
Safety standards: IEC / EN 61243-1
Accessories: Instruction manual
