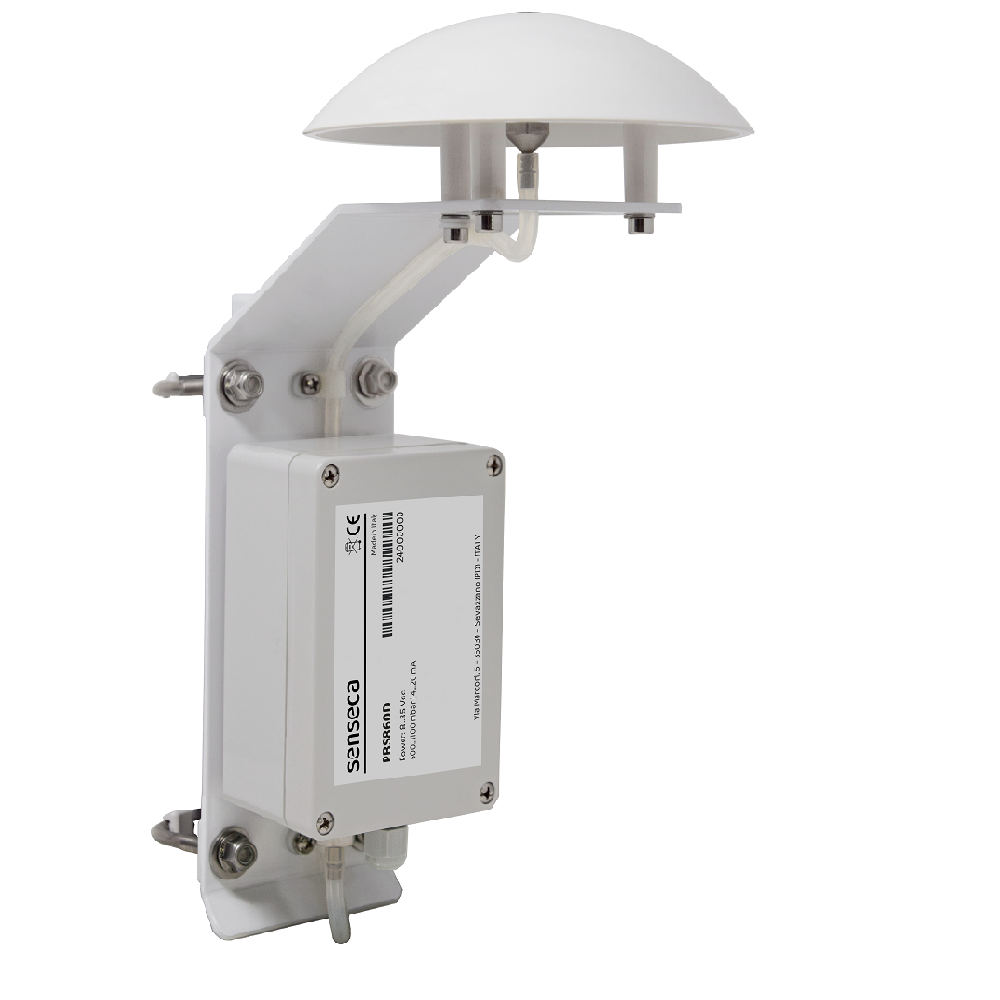

Senseca PBS860X アナログ出力気圧送信機 (600…1100 hPa, 0…5 V)
生産者: Senseca Model: PBS860X - 連絡先
General specifications
Output : 0…5 V
Power supply: 8…35 Vdc
Connection: Internal screw terminal header / PG7 cable gland for power supply and output.
Operating conditions: -30…+60 °C
Compatible media: Air and dry gases
Housing dimensions: 120 x 80 x 55 mm
Weight: 250 g approx. (+ 570 g approx. for static port)
Material Housing: polycarbonate
Pressure input: AISI 304
Protection degree: IP 65
Measurement specification
Sensor: Piezoresistive
Measuring range: 600…1100 hPa
Accuracy: ± 0.5 hPa @ 20°C
Temperature drift
<1 % F.S., zero
<1 % F.S., span over –20 to +60 °C (-4 to 140 °F)
Long-term stability: < 0.25 % F.S. over 6 months at 20 °C
