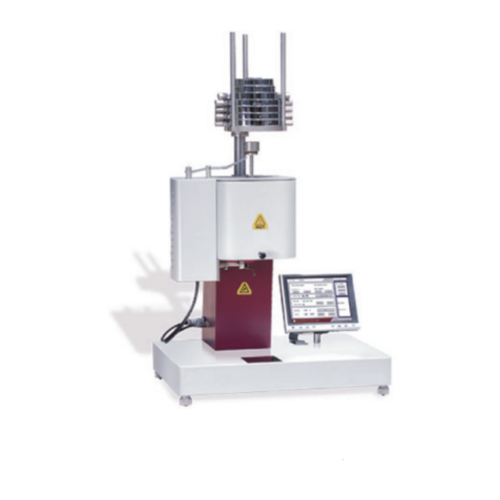

Samyon MFI-2322 プラスチックメルトフローインデクサー試験装置 (1-150)

Application:

MFI-2322H is designed for polymers with ultra-high flow rate value (MVR : 500cm3/10min to 3000cm3/10min), especially for the melting spray polymers of Polypropylene and nanofiber. Thanks to the millisecond accurate displacement measurement, and equipping with the die plug device, the high flow rate up to 3000cm3/10min can be accurately measured. Test methods: MVR Display mode: Full color touch screen Temperature range: 50ºC~ 450ºC Temperature resolution: 0.01ºC

Standard description:

ASTM D 1238-13: Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer

ISO 1133-1-2: 2011: Plastics-Determination of the melt mass-flow rate (MFR) and the melt volume-flow rate (MVR) of thermoplastics

Parameter:

Test method: MFR&MVR

Display: Full color touch screen

Measurement Range: (0.1-100)g/10min / (1-150)m3/10min

Test loads applied: Motorized

Temperature range: (100-450)°C

Temperature control: ≤0.2°C

Temperature resolution: 0.1°C

Timing accuracy: 0.01s

Displacement accuracy: ±0.1mm
