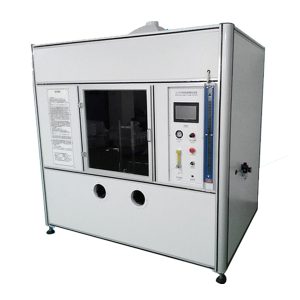

Lonroy LR-K006 UL1581 横型・縦型燃焼試験機 (4.0 m3)

Acuity 4.0 m3 Ø internal volume

Thermal sensor (10.0 + / – 0.05 g and thermocouple electrolytic copper piece)

K type thermocouple, with 0.5 mm diameter stainless steel pipe’s coat

Intelligent PID temperature controller and match the K type thermocouple, the readings of up to 1000 ℃

Timer: 0 ~ 99 m99 h99/99/99 s99 can be set freely, minimum resolution can reach 0.01 S

Test flames rising from 100 ℃ + 2 ℃ to 100 ℃ + 3 ℃ when need time for 54 s + 2 s

Main fixture: test stand and the burning torch

Test support: # by SUS304 stainless steel, stents and vertical points level

Combustion burner: meet the requirements of ASTM D 5025-05, standard power: 500 w.Nozzle diameter: 0.90 + 0.03 mm, nozzle length: 1.60 + 0.05 mm, nozzle diameter: 9.5mm;Air inlet height: 100mm + 10mm
