| 生産者: | Cybertek |

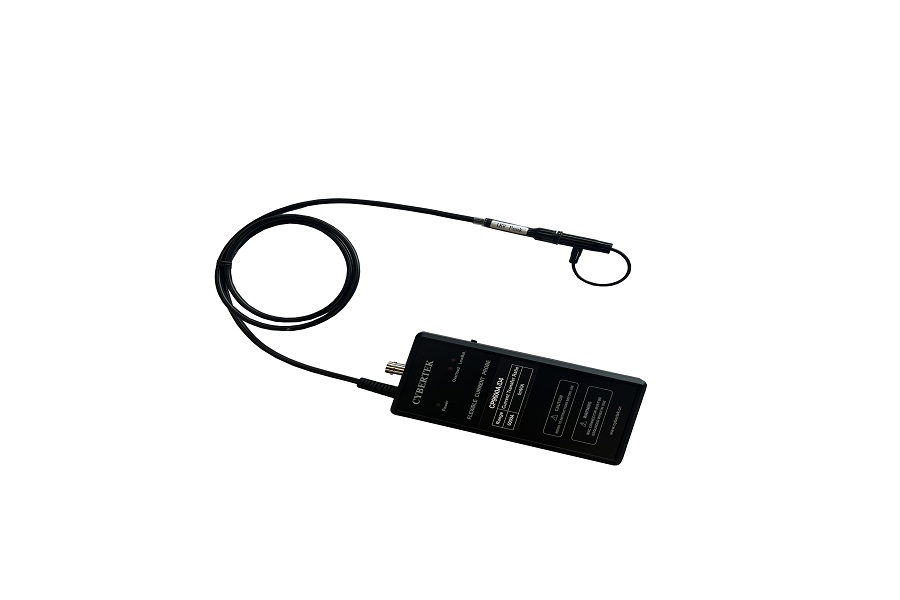

| Model: | CP9006SA |
Sensitivity (mV/A): 100
Peak current (kA): 0.06
Peak di/dt (kA/µS): 4
Noise max (mVp-p): 20
Droop typ. (%/ms): 65
LF bandwidth -3dB(Hz): 67
HF bandwidth -3dB(MHz): 30
Rise time: ≤11.6ns
Accuracytyp.: 2%
Insulation voltage: 1kV
Max. output voltage: ±6Vpk
Terminal load: ≥100kΩ
