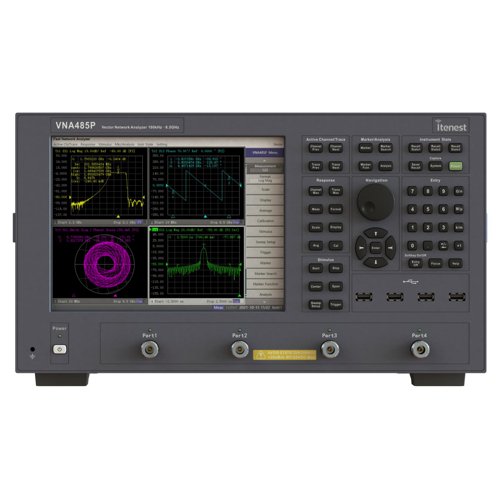

SYSTEM MEASUREMENT RANGE
Frequency Range: 100 kHz to 8.5 GHz
Number of Test Ports: 2 or 4
Test Port Connector Type: N-Type, Female
Output Power Range:
100 kHz to 2 MHz: -55 dBm to -10 dBm
2 MHz to 8.5 GHz: -55 dBm to +10 dBm
System Impedance: 50Ω (75Ω via adapter)
Frequency Setting Resolution: 0.05 dB
Number of Measurement Points: 2 to 20,001
System Bandwidth (IFBW): 10 Hz to 1.5 MHz
System Dynamic Range (RF Range Fixed Mode = OFF) @ IFBW = 10 Hz:
100 kHz to 500 kHz: 95 dB
500 kHz to 2 MHz: 110 dB
2 MHz to 8.5 GHz: 135 dB
MEASUREMENT ACCURACY (UNCERTAINTY)
Trace Noise: Meas. Power = Max Output Power
Transmission:
100 kHz to 10 MHz (IFBW = 3 kHz): 4 mdB rms / 0.03° rms
10 MHz to 8.5 GHz (IFBW = 70 kHz): 4 mdB rms / 0.03° rms
Reflection:
100 kHz to 10 MHz (IFBW = 3 kHz): 5 mdB rms / 0.05° rms
10 MHz to 8.5 GHz (IFBW = 70 kHz): 5 mdB rms / 0.05° rms
