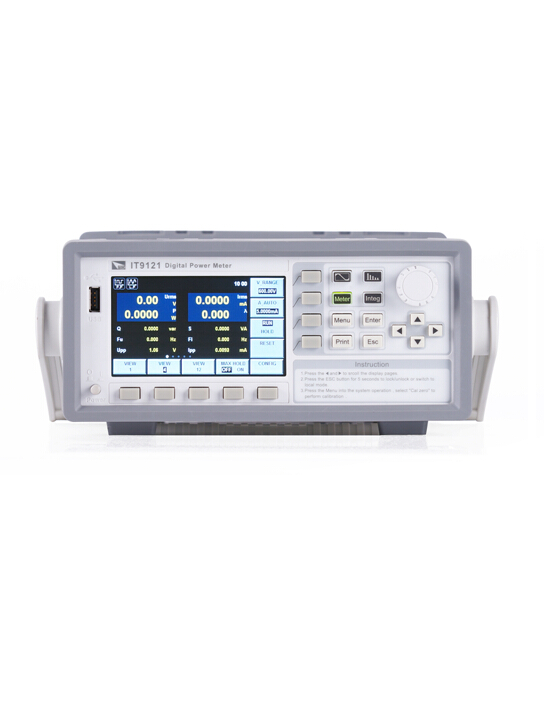

ITECH IT9121 Power Meter (600Vrms/20Arms)

Measuring range: 600Vrms/20Arms

Voltage range: 15V~600V A total of 6 ranges

Direct input current range (CF=3): 5mA~20A A total of 12 ranges

External current input (CF=3)

EX1:50mV-2V A total of 6 ranges

EX2:2.5V/5V/10V A total of 3 ranges

Accuracy: 0.1%

Bandwidth: DC,0.5HZ-100KHZ

Communication Interface:

USB

USB peripheral interface

GPIB

RS232

Ethernet

Measure the voltage, current, power and harmonic parameters at the same time: yes

Frequency measurement function: yes

Frequency filter: Select OFF or ON (cutoff frequency is 500HZ)

Line filter: Select OFF or ON (cutoff frequency is 500HZ)

Harmonic measurement: Standard

Measure the number of harmonics: 50 times

Single harmonic analysis function: yes

Oscilloscope function: yes

Current integration, active power integration: yes

Automatic range: yes

Measure the synchronization source: yes

Display: TFT 4.3-inch color LCD TFT

*For detailed specifications, please refer to the Datasheet
