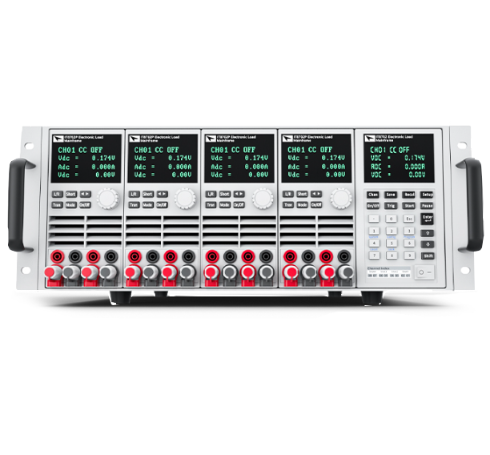

ITECH IT8722P Multi-channel Programmable DC Electronic Load (80V/20A/250W*2CH)

Rated parameter (0~40℃)

Input voltage: 0~80V

Input current: 0~20A

Input power: 250W

Min operating voltage:  0.15V/3A; 1.0V/20A

CV mode

Range: 0~18V; 0.1~80V

Resolution: L: 1mV; H: 10mV

Accuracy: ±(0.05%+0.025%FS)

CC mode

Range: 0~3A; 0~20A

Resolution: L: 0.1mA; H: 1mA

Accuracy: ±(0.05%+0.05%FS)

CR mode

Range: L: 0.05Ω~10Ω; H: 10Ω~7.5KΩ

Resolution: 16bit

Accuracy: 0.01%+0.08S; H: 0.01%+0.0008S

CP mode

Range: 250W

Resolution: 10mW

Accuracy: ±(0.2%+0.2%FS)

Measuring range

Voltage readback value

Range:0~18V; 0.1~80V

Resolution: L:1mV; H:10mV

Accuracy: ±(0.025%+0.025%FS)

Current readback value

Range: 0~3A; 0~20A

Resolution: L:0.01mA; H:0.1mA

Accuracy: ±(0.05%+0.05%FS)

Power readback value

Range: 250W

Resolution: 10mW

Accuracy: ±(0.2%+0.2%FS)

Protected range

Over power protection: ≒250W

Over voltage protection: ≒3.3A; ≒22A

Over voltage protection: ≒82V

Over temperature protection: ≒85℃

Input terminal impedance: 300KΩ

Size(mm): 82*183*573

Weight: 5KG
