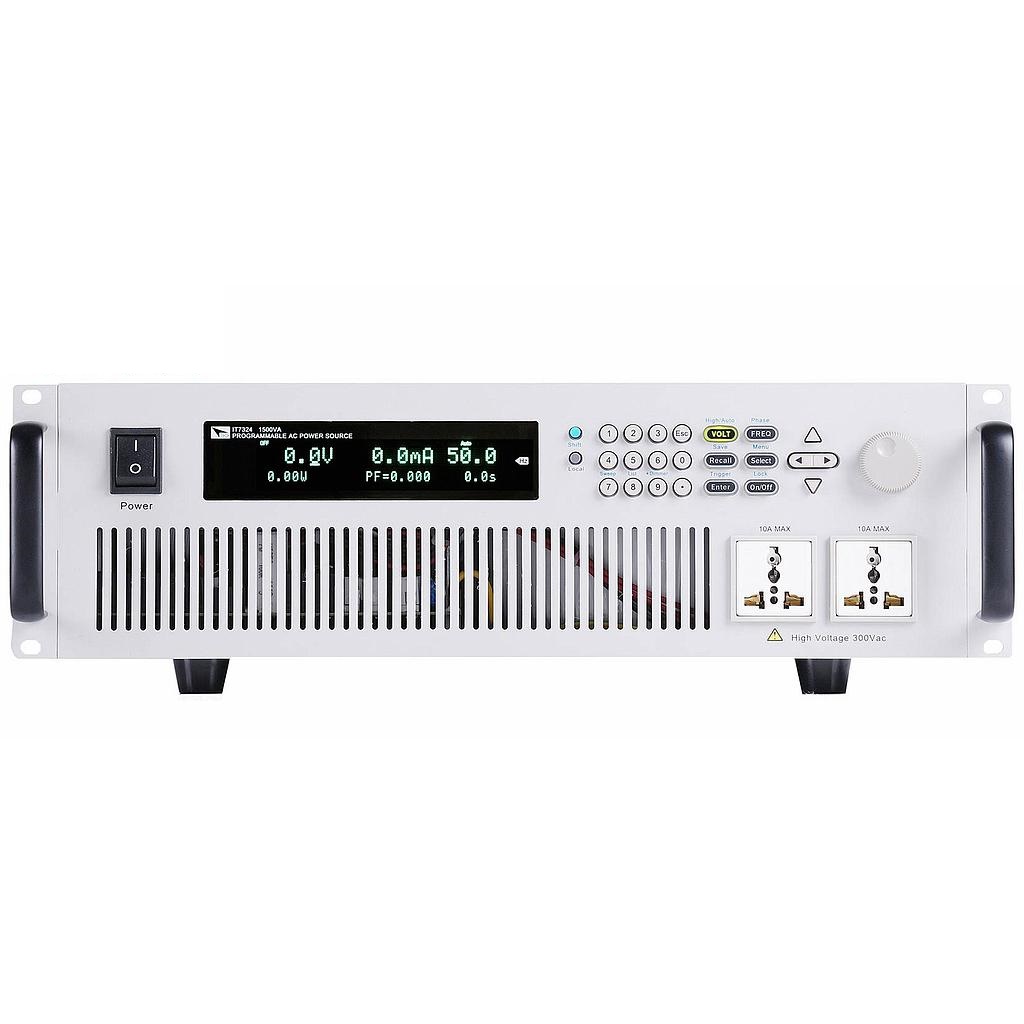

Itech IT7326H Programmable AC Power Supply (500V ; 3000VA; 1 phase)

- Input:
+ Phase: 1
+ Voltage: 220 Vac
+ Frequency: 47-63 Hz
+ Current Max: 60A
- AC Output
+ Max.Power : 3000VA
+ Phase: 1
+ Max. Current 0-150Vrms: max 12A, Peak 48A
+ Max. Current 0-300Vrms: max 6A, Peak 24A
+ Total harmonic distortion : ≦ 0.5% at 45~500Hz
+ Line regulation: 0.1%
+ Load regulation: ≦0.5%
- Setting
+ Voltage:
. Range: 0-500V, 250/500 V Auto
. Resolution: 0.1V
. Accuracy: +/- (0.2% +0.6V)
+ Frequency:
. Range: 45-500 Hz
. Resolution: 0.1 HZ at 45-99.9 Hz; 1 HZ at 100-500 Hz
. Accuracy: 0.1 Hz
+ Phase angle:
. Range: 0-360 decree
. Resolution: 0.1 decree
. Accuracy: +/- 1 decree ( 45-65 Hz)
- Measurement
+Voltage
. Range: 0-500 Vrms
. Accuracy: +/- (0.2% +0.6V)
. Resolution: 0.1Vmrs
+Current
.Range: L: 240.0mA/ M: 2.400A/ H: 24A
. Resolution: L: 0.1mA/ M: 1mA/ H: 10mA
. Accuracy: L: +/- (0.2% +0.6mA); M: +/- (0.2% +6mA); H: +/- (0.2% +40mA)
+Power
.Resolution: L: 0.01W, M: 0.1W, H: 1W
.Accuracy (47-65 Hz): L: +/- (0.2% +0.05W); M: +/- (0.2% +0.5W); H: +/- (0.2% +2W)
+Current (peak)
.Range: 0-48 A
.Accuracy :+/- (1% +360mA)
.Resolution: 0.01A
