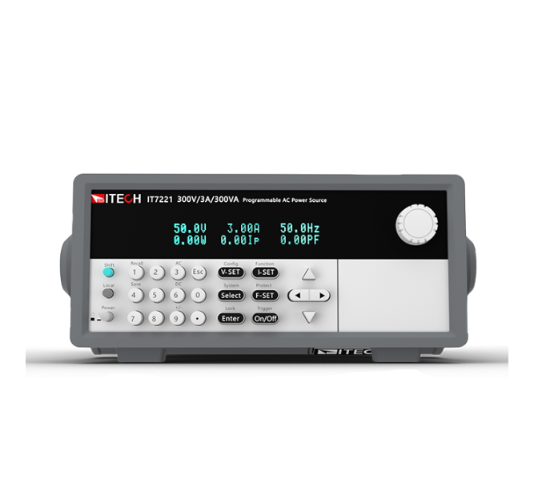

ITECH IT7221 Programmable AC/DC Power Supply (300V/3A/300VA/300W)

AC Input

Voltage: 220Vac (±15%)

Phase: single phase

Frequency: 47～63Hz

Max. current: 3.3A

AC Output

Max. power: 300VA

Max. voltage: 300V

Output phase: single phase

Max current(rms): 3A

Max current(peak): 9A

Frequency: 45 ～ 500Hz

Phase: 0 ～ 359.9°

T.H.D: ≤0.3% at 50/60Hz ; ≤1% at 45～500Hz

Crest factor: 3

Power regulation: ≤0.06%

Load regulation: ≤0.15%

Voltage(VAC)

Resolution: 0.1V

Accuracy: ±(0.2% +0.2%×F.S.)

Frequency

Resolution: 0.1Hz

Accuracy: ±0.1%

Phase angle

Resolution: 0.1°

Accuracy: 0.5°

DC bias: 20mV

Efficiency: 73% (typical)

DC Output

Max. output power: 300W

Max. output voltage: ±400V

Max. output current: ±3A

Voltage(VDC)

Accuracy: ±(0.2%+0.2%×F.S.)

Dynamic response: ≤0.5ms(Full load of 10~90%)

Other

Dimension: 255mm (W)x 110mm (H) x 493.9 (D) mm

Weight: 8.05 KG
