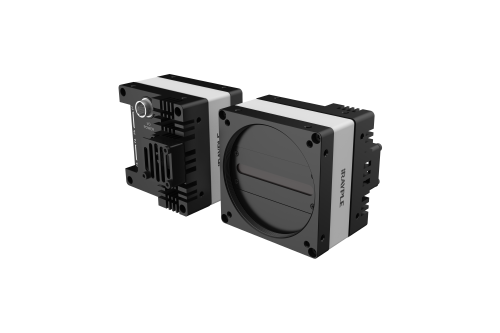

iRAYPLE L5087MKA70E Line Scan Camera (8 K; 8192 × 4; Mono)

Basic

Sensor: 8 K

Image Sensor: Gpixel

Shutter: Global

Resolution: 8192 × 4

Line Rate: 100 kHz

Bit Depth: 10

Mono/Color: Mono

Pixel Size: 5 μm × 5 μm


Pixel: 8192×4

S/N Ratio: 40 db

Dynamic Range: 62 db

Image Format: Mono8/10

ROI: Support

X Flip: Support

Gain: 1~32

Gamma: From 0 to 4，support LUT

Exposure Time: 3 μS~100 mS

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

FPN: Support

TDI Stages: single_line，2TDI，4TDI

Performance

User Setting: Support two sets of user-defined configurations

Pixel Clock: 34 51 68 85MHz

Port

Port: CameraLink,use to camera control and data transmission, support base, medium, full mode.

GPIO Interface: 4 differential input, output, and 1 GPIO input, output,

Lens Mount: M72

Power

Power Supply: DC 12~24V power supply via 12-pin Hirose connector

Power Consumption: 11.5 W

Structure

Product Dimensions: 80 mm×80 mm×57.8 mm(Not including rear case connector)

Net Weight: 520 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
