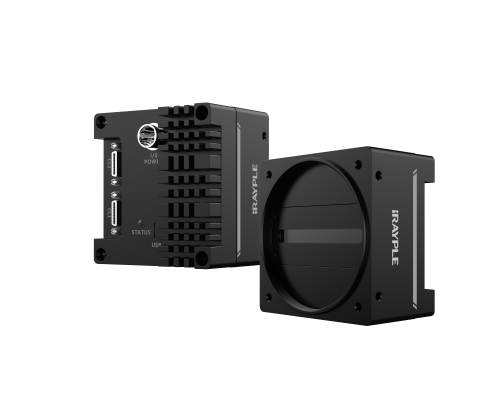

iRAYPLE L5087MK471E Line Scan Camera (8K; 8192×4; Mono)

Basic

Sensor: 8K

Image Sensor: CMOS

Shutter: Global

Resolution: 8192×4

Line Rate: 100K

Bit Depth: 12

Mono/Color: Mono

Pixel Size: 7 μm × 7 μm


Pixel: 8192×4

S/N Ratio: 40dB

Dynamic Range: 63.3dB

Image Format: Mono8/10

Binning: Support

ROI: Support

X Flip: Support

Gain: 1~32

Gamma: From 0 to 4，support LUT

Exposure Time: 4μS~100mS

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

FPN: Support

TDI Stages: singleLine;fourLine;two_tdi

Performance

User Setting: Support two sets of user-defined configurations

Pixel Clock: 51/67/75/85MHz

Port

Port: CameraLink

GPIO Interface: 4 differential input, output, and 1 GPIO input, output

Lens Mount: M72

Power

Power Supply: DC 12~24V power supply via 12-pin Hirose connector

Power Consumption: 8.5W

Structure

Product Dimensions: 80mm×64mm×47.1mm (Not including rear case connector)

Net Weight: 520 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
