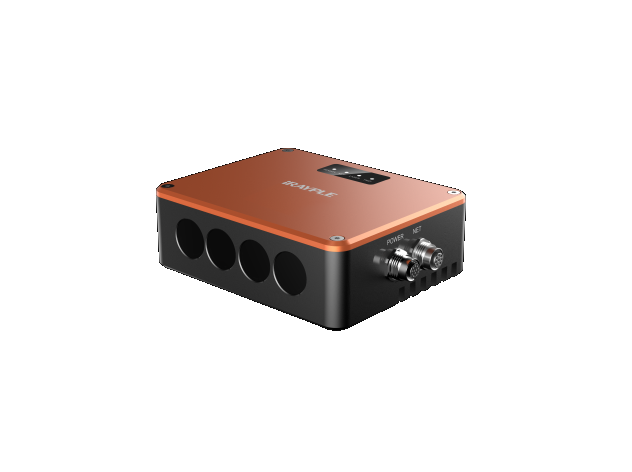

iRAYPLE DS5131MG30CE 3D Stereo Camera (600 mm-3500 mm)

Basic

Resolution: Mono：1280 × 960；Color：1288 × 1032

Max. Frame rate: 30 fps

Sensor Type: Mono：1/3"，CMOS；Color：1/2.7"，CMOS

Shutter Mode: Global

Pixel Size: Mono：3.75 μm × 3.75 μm；Color：4.0 μm × 4.0 μm

Mono/Color: Mono&Color

Lens Mount: M12

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

Software: SCV

Certifications: CE，FCC

Function: Volume measurement，Positioning guide

Performance

Near FoV: 590 mm×540 mm

Far FoV: 3880 mm×3190 mm

Operating Distance: 600 mm-3500 mm

Z-axis Accuracy: 1 m@±2 mm

Data Type: Color map, depth map, points cloud, dimension;

Light Source type: Illuminator module

Laser Grade: class1

Port

Connector: 2 industrial-grade connector supports Ethernet and GPIO

Network Port: Code-A, GigE Ethernet

GPIO Interface: 2-opto isolated inputs

Communication Mode: Ethernet、RS232

Communication protocol: SDK，Serial，TCPServer，TCPClient

LED Indicator: Power ethernet, network, trigger, laser

Power

Power Supply: Support DC12V-24V wide-range power supply, suitable for DC12V/24V voltage environment;

Power Consumption: ＜10.0 W

Structure

Product Dimensions: 150 mm×120 mm×50.5 mm(Not including connector height)

Packaging Dimensions: 369 mm × 257 mm × 148 mm

Net Weight: ＜1500 g

Gross Weight: ＜3200 g

Protection: IP65

Casing Material: Aluminium alloy

Environment

Operating Temperature: -20℃-+50℃

Operating Humidity: 20%-95%, condensation

Storage Temperature: -30℃-+80℃
