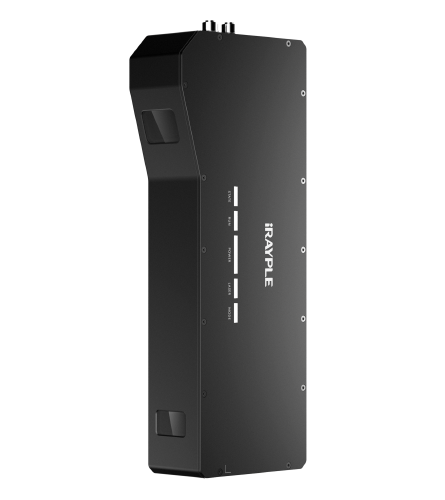

iRAYPLE DH-MV-D5201MG100E 3D Industrial Camera (1000mm)

Basic

Max. Frame rate: 250 fps

Software: Volume3D

Certifications: CE，FCC

Function: Point cloud image, W*D*L data, Volume measurement, Integral volume

Performance

Near FoV: 1000mm

Far FoV: 2200mm

Clearance Distance: 830mm

Operating Distance: 1000mm～1800mm（Affect measurement range）

Measuring Range: 1000mm

Measuring Accuracy: 5mm*5mm*5mm

Max. Operating Speed: 2m/s

Laser Grade: 3B

Port

Connector: 2 industrial grade M12 connectors, for Ethernet and GPIO

Network Port: Code-A, Gigabit Ethernet

GPIO Interface: 12-pin I/O interface, contain POWER/IO/Encoder interface

Port: Ethernet,RS232

Communication protocol: SDK，Serial，TCPServer，TCPClient，Profinet

LED Indicator: Power,Network,Trigger,Laser,Mode

Power

Power Supply: Support DC12V～24V wide-range power supply,adapt for industrial DC12V/24V different voltage environment

Power Consumption: <10.0W

Structure

Product Dimensions: 370mm×65.6mm×150mm(Not include Interface height)

Net Weight: <4 kg

Protection: IP65

Casing Material: Aluminum alloy

Environment

Operating Temperature: -10℃～+50℃

Operating Humidity: 20%～85%，no condensing

Storage Temperature: -30℃～+70℃
