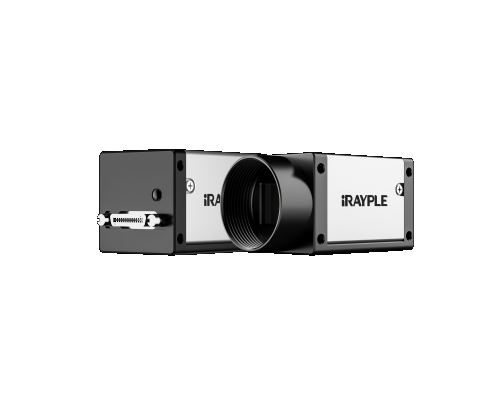

iRAYPLE A7500MK402E Area Scan Camera (IMX264; 2448 × 2048; Mono)

Basic

Sensor: IMX264

Image Sensor: 2/3" CMOS

Shutter: Global

Resolution: 2448 × 2048

Frame Rate: 30.2 fps

Bit Depth: 12

Mono/Color: Mono

Pixel Size: 3.45 μm × 3.45 μm


Pixel: 5MP

S/N Ratio: >38dB

WDR: >70dB

Image Format: Mono8/10

ROI: Support

X Flip: Support

Y Flip: Support

Gain: 1~32

Exposure Time: 16μS~1S

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

Performance

User Setting: Support two sets of user-defined configurations

Pixel Clock: 32M/48M/64M/80M

Port

Port: CameraLink

Lens Mount: C-mount

Power

Power Supply: PoCL power supply

Power Consumption: ≈2.3W

Structure

Product Dimensions: 29mm*29mm*43.8mm(not including lens mount and rear case connector)

Net Weight: 80 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
