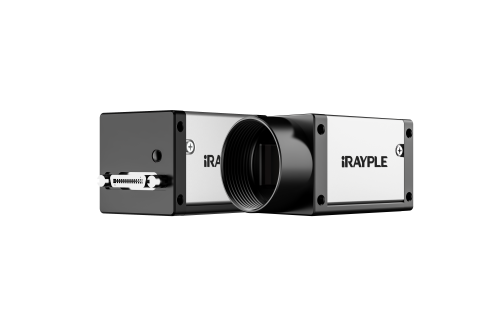

iRAYPLE A7040MK402E Area Scan Camera (IMX287; 720 × 540; Mono)

Basic

Sensor: IMX287

Image Sensor: 1/2.9" CMOS

Shutter: Global

Resolution: 720 × 540

Frame Rate: 349 fps

Bit Depth: 10

Mono/Color: Màu

Pixel Size: 6.9 μm × 6.9 μm


Pixel: 0.4MP

S/N Ratio: >38dB

WDR: >70dB

Image Format: Mono8/10

ROI: Support

X Flip: Support

Y Flip: Support

Gain: 1~32

Exposure Time: 16μS~1S

Trigger Mode: Software Trigger/Acquisition Board Hardware Trigger/Free Run Mode

User Setting: Support two sets of user-defined configurations

Pixel Clock: 32M/48M/64M/80M

Port

Port: CameraLink

Lens Mount: C-mount

Power

Power Supply: PoCL

Power Consumption: ≈2.38W

Structure

Product Dimensions: 29mm*29mm*43.8mm(not including lens mount and rear case connector)

Net Weight: 80 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
