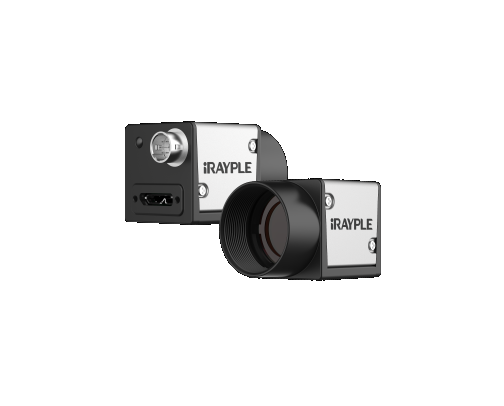

iRAYPLE A5200CU000E Area Scan Camera (IMX430; 1624 × 1240; Color)

Basic

Sensor: IMX430

Image Sensor: 1/1.7"CMOS

Shutter: Global

Resolution: 1624 × 1240

Frame Rate: 89 fps

Bit Depth: 12

Mono/Color: Color

Pixel Size: 4.5 μm × 4.5 μm


Pixel: 2.0 1MP

S/N Ratio: >38dB

WDR: ～

Image Format: BayerRG8/10/10Packed;BayerGB8/10/10Packed

ROI: Support

X Flip: Support

Y Flip: Support

Gain: 1~32

White Balance: Support

Gamma: Range from 0 to 4, support LUT

Exposure Time: 18 μs~1 s

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 64 MB

Port

Port: USB 3.0

GPIO Interface: 6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation

Lens Mount: C

Power

Power Supply: Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V

Power Consumption: ≈3.2 W

Structure

Product Dimensions: 29 mm×29 mm×29 mm(not including rear case connector)

Net Weight: 60 g

Environment

Storage Temperature: -30° C~ + 80° C

Operating Temperature: -30° C~+50° C
