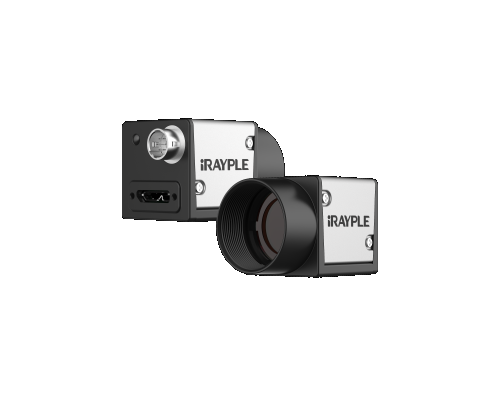

Basic
Sensor: IMX226
Image Sensor: 1/1.7"CMOS
Shutter: Rolling
Resolution: 4000 × 3000
Frame Rate: 30 fps
Bit Depth: 10
Mono/Color: Color
Pixel Size: 1.85 μm × 1.85 μm
Pixel: 12MP
S/N Ratio: >38dB
WDR: 66dB
Image Format: BayerRG8/10/10Packed，BayerGB8/10/10Packed
ROI: Support
Gain: 1~32
White Balance: Automatic white balance
Gamma: From 0 to 4，support LUT
Exposure Time: 55μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 64MB
Port
Port: USB3.0
GPIO Interface: 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount: C
Power
Power Supply: Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Power Consumption: ≈3.1 W
Structure
Product Dimensions: 29mm*29mm*29mm
Net Weight: 68 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
