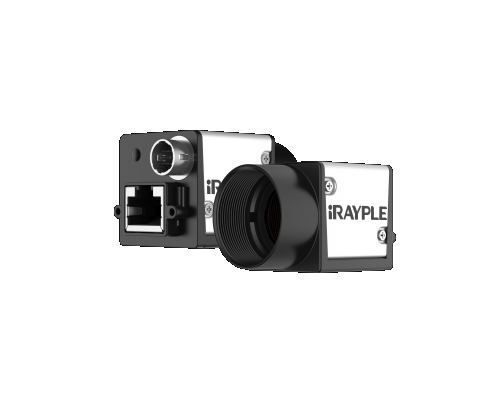

iRAYPLE A3124CG100E Area Scan Camera (AR0135; 1280 × 960; Color)

Basic

Sensor: AR0135

Image Sensor: 1/3"CMOS

Shutter: Global

Resolution: 1280 × 960

Frame Rate: 54 fps

Bit Depth: 12

Mono/Color: Color

Pixel Size: 3.75 μm × 3.75 μm


Pixel: 1.2MP

S/N Ratio: 40.7dB

WDR: 71.1dB

Image Format: Mono8，BayerRG8/10/10Packed/12/12Packed，BayerGB8/10/10Packed/12/12Packed，RGB8Packed,YUV422Packed

ROI: Support

Gain: 1~32

White Balance: Support

Gamma: From 0 to 4，support LUT

Exposure Time: 18.7μS~1S

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 128MB

Port

Port: GigE

GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output

Lens Mount: C-mount

Power

Power Supply: DC 9V~24V power supply via Hirose interface

Power Consumption: 12V≈2.8W

Structure

Product Dimensions: 29mm*29mm*29mm

Net Weight: 60 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
