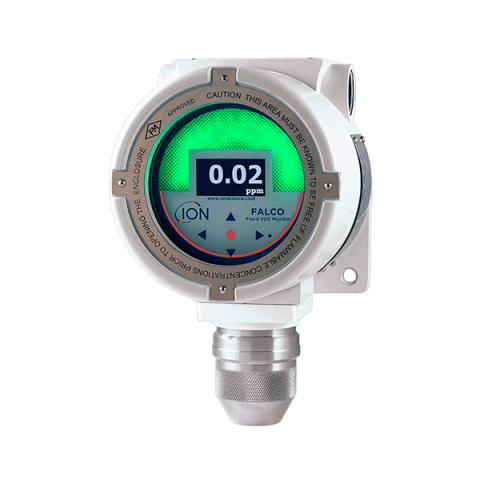

Ion Science Falco Bomba Fixed VOC Gas Monitor (10ppm/50ppm/1000ppm/3000ppm)

Sensor: Photoionisation detector

Falco detection ranges and sensitivity with 10.6eV lamp fitted: 10.0 ppm (0.001 ppm); 50.0 ppm (0.01 ppm); 1000 ppm (0.1 ppm); 3000 ppm (1 ppm)

Falco detection ranges and sensitivity with 10.0eV lamp fitted: 50.0 ppm (0.01 ppm)

Response time (T90): Pumped models <10 seconds

Accuracy: ±5% or ±1 digit

User interface: OLED high contrast white on black; 128 × 64 pixels; Screen size 35 mm (w) × 17.5 mm (h); 5 magnetic switches with LED confirmation (up, down, left, right & enter)

Status indicator: Bright visible status indicator; RED, AMBER, GREEN

Output: 4–20 mA; 2 programmable relays; RS 485 Modbus

Falco pumped environmental specification: Operational temperature -20°C to 50°C; 0–100% RH and condensing humidity; Storage temperature -20°C to 60°C

Ingress Protection: Main unit IP65; Sensor head IP65

Power: Working voltage 12 to 40 Vdc; Typical 2 W, Max. 7 watts

Mechanical interface: 2 × cable entry points with 3/4” NPT threads (left and right)

Mounting points: 2 × M8

Weight & Dimensions (with pump): 3.3 kg; 291 (h) × 191 (w) × 125 (d) mm

EMC: EMC Directive 2014/30/EU

Certification: II 2G Ex db ib IIC T4 Gb; Class 1, Div 1 Groups ABCD T4; ISO9001:2015
