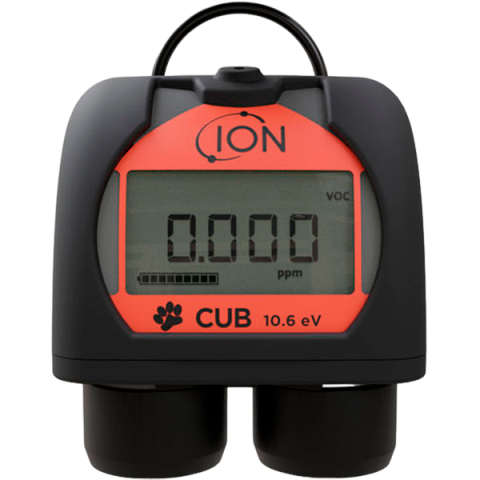

Ion Science CUB Personal detector (0-5000 ppm)

Range: 0-5000ppm

Sensitivity: 0.001 ppm (isobutylene equivalent); 0.002 mg/m³ (isobutylene equivalent)

Accuracy: ±5% of reading ±1 digit

Response Time: < 13 seconds (T90)

Approvals:

II 1G Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ 55°C)

Baseefa11ATEX0027

IECEx BAS 11.0014

US & Canada: Class I, II, III, Division I hazardous locations

Battery:

Battery life up to 12 hours

Charging time: 4 hours

PID Lamp Options: 10.6 eV, 10.0 eV

Data Logging: 30,000 readings

Communication: USB 2.0

Alarm:

LEDs, audible alarm and vibration

Sounder: 95 dB at 300 mm

Pre-programmed TWA & STEL

Work exposure alarm levels on all models

Temperature:

Operating: -20°C to 60°C (-4°F to 140°F)

Certified: -20°C to 55°C (-4°F to 131°F)

Weight & Dimensions:

Weight: 111 g (2.91 oz)

Dimensions: 61 x 66 x 59 mm (2.4 x 2.6 x 2.3 in)

Resolution:

ppm: 0.1 ppm

ppb: 0.001 ppm

TAC: 0.01 ppm

Range: 0–5000 ppm

Calibration: 2-point calibration via docking station

Upgradeable: Upgrade from ppm to ppb

IP Rating: IP65 (heavy rain resistant)

Display: Backlit multi-colour LCD

Flow Rate: N/A (no pump)

Datasheet
