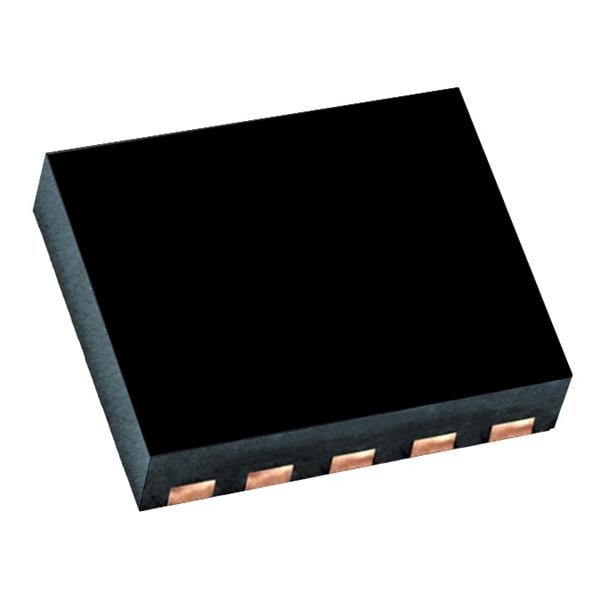

Intersil HIP2211FRTZ-T7A High-Side, Low-Side 100V/4A HI/LI Half Bridge Driver,10Ld 4x4 TDFN. T&R

Shutdown: No Shutdown

Fall Time: 365 ns

Rise Time: 435 ns

Logic Type: CMOS

Unit Weight: 849.565 mg

Mounting Style: SMD/SMT

Output Current: 4 A

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Supply Voltage - Max: 18 V

Supply Voltage - Min: 6 V

Propagation Delay - Max: 30 ns

Operating Supply Current: 1.5 mA

Maximum Turn-On Delay Time: 30 ns

Maximum Turn-Off Delay Time: 30 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
