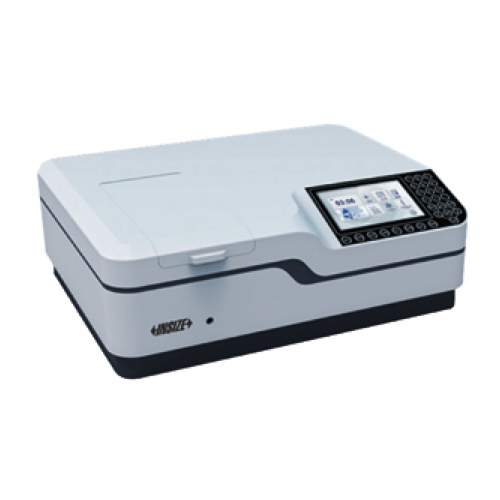

INSIZE UVS-B103 Ultraviolet-Visible Spectrophotometer (Advanced Type) (190~1100nm)

Optical system: Double beam, grating 1200 lines/mm

Wavelength range: 190~1100nm

Spectral bandwidth: 2.0nm

Wavelength accuracy: ±0.3nm

Wavelength repeatability: ≤0.1nm

Wavelength resolution: 0.1nm

Stray light: ≤0.1%T @420nm, ≤0.05%T @220nm/340nm

Noise: ≤0.05%T (transmittance 0%), ≤0.1%T (transmittance 100%)

Baseline flatness: ±0.001A/h

Photometric range: 0~200%T, -3~3A, 0~9999C (0~9999F)

Photometric accuracy: ±0.3%T

Photometric repeatability: ≤0.1%T

Work mode: T, A, C, E

Light source: Deuterium lamp, tungsten lamp

Display: 7" TFT color screen

Data storage: 2000 test data or 500 working curves

Data output: Export via U disk, supporting Excel, txt, and image

Power supply: AC 220V, 50Hz

Dimension (W×D×H): 450×580×210mm

Weight: 21kg

Datasheet

STANDARD DELIVERY:

Main unit: 1 pc

Glass cuvette (10mm): 1 set

Quartz cuvette (10mm): 1 set
