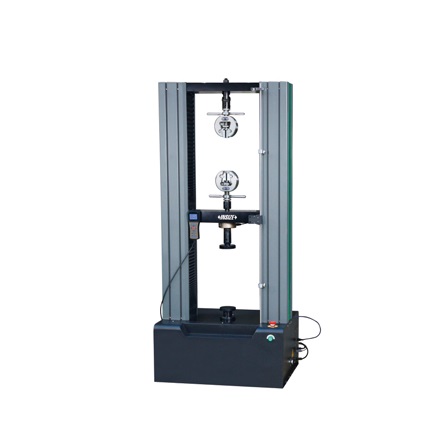

Max. test force: 10kN
Accuracy class: 0.5 class
Test force measurement range: 0.2% - 100%FS
Test force measurement accuracy: ±0.5% of the indicting value
Resolution of test force measurement: 1/500000FS
Crossbeam displacement accuracy: ±0.5% of indicating value
Range of displacement resolution: 0.025µm
Range of speed adjustment: 0.001 ~500mm/min
Range of force control speed: 0.005-5%FS/s
Force control speed control accuracy:
±1% of the set value (speed<0.05%FS/s)
±0.2% of the set value (speed ≥0.05%FS/s)
Deformation speed control accuracy:
±2% of the set value (speed<0.05%FS/s)
±0.5% of the set value (speed ≥0.05%FS/s)
Compression fixture: ø100mm
Vertical test space: 1030mm
Effective compression travel: 800mm
Effective tets width: 400mm
Power supply: 380V, 50Hz, 2kW-5kW
Dimension: 1070x855x2180mm
Weight: 1000kg
