Measuring Range: 0~10000mm
Working Frequency: 0.5~20MHz
Material Velocity: 1000~15000m/s, adjustable in continuity; 30 pre-set nominated velocities for common materials
Repetition Frequency: 25~1600Hz
Dynamic Range: ≥32dB
Gain Range: 0.0~110dB (steps: 0.1dB, 1.0dB, 2.0dB, 6.0dB)
Vertical Linearity: ≤3.0%
Horizontal Linearity: ≤0.4%
Resolving Power: >26dB (2.5P20)
Sensitivity Leavings: >62dB (200∅2 flat bottom hole, narrow band)
Attenuator: 12dB±1dB
Suppression: 0~99%
Noise: ≤10%
Display Screen: 5.7" TFT color LCD, resolution 640X480
Pulse Type: sharp wave, negative square wave, bipolar square wave; transmit voltage 50~250V adjustable, step 50V
Pulse Shift: -7.5~3000us
Probe Zeroing: 0~200us
Rectification: positive, negative, full-play, RF
Gates and Alarms: two-way gate, optional: into the wave alarm, lost wave alarm, DAV curve alarm, alarm signal for sound and light alarms, measurement mode: peak, frontal
Interface: Q9 (BNC), USB HOST, Mini HDMI
Damping: 400 Ω, 800Ω
Power: rechargeable lithium-ion battery, working time 68h
Storage Temperature: -30~50°C
Relative Humidity: 20~95%RH
Size: 246×166×50mm
Weight: 1.3kg
STANDARD DELIVERY:

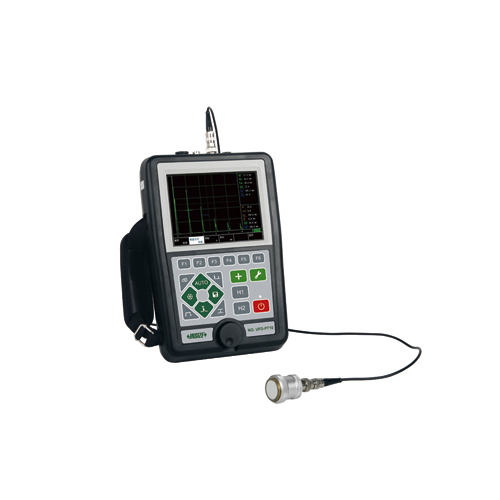

Main unit: 1 pc
Single-element straight probe UFD-P70: 1 pc
Single-element angle probe UFD-P71: 1 pc
Probe connecting cable: 2 pcs
Mainframe backpack: 1 pc
USB disk: 1 pc
Power adapter: 1 pc
Functions:
Flaw Detection Standard: built-in common flaw detection standards, direct call, convenient and fast
Auto Calibration: automatic calibration of probe zero offset, probe angle (K value), and material velocity
Peak Hold: compare frozen peak waveforms to live A-Scans to easily interpret test results
Flaw Locating: live display of sound-path, projection (surface distance), depth, amplitude
Flaw Discrimination: automatic flaw sizing using AVG or DAC, speeds reporting of defect acceptance or rejection; the equivalent dB value of defects or equivalent size of defects displayed in real time
Flaw Sizing: used for flaw detection of curved workpieces; displays the circumferential position of defects in real time
Curved Surface Correction: the curve is automatically generated, and sampling points are compensated and corrected; the curve automatically floats with the gain, expands with the detection distance, and moves with the delay time; displays the AVG curve of any aperture
DAC/AVG: AWS D1.1/1.5; choosing this standard reduces manual calculations and improves detection efficiency
Automatic Rating: select different AWS standards, automatically calculate the rating of defects, and display
Crack Height: crack height is measured and calculated automatically by the diffracted wave at the end
Gate Magnify: spreading of the gate range over the entire screen width
Continuous Record: video recording and playback
Echo Coding: display 1-9 echo display areas in different colors, used to analyze defect position
Scan Freeze: display freeze holds waveform and test distance data
Peak Mark: capture and mark the peak in real time
B Scan: intuitively displays the defect shape of the workpiece, making the detection result more intuitive
